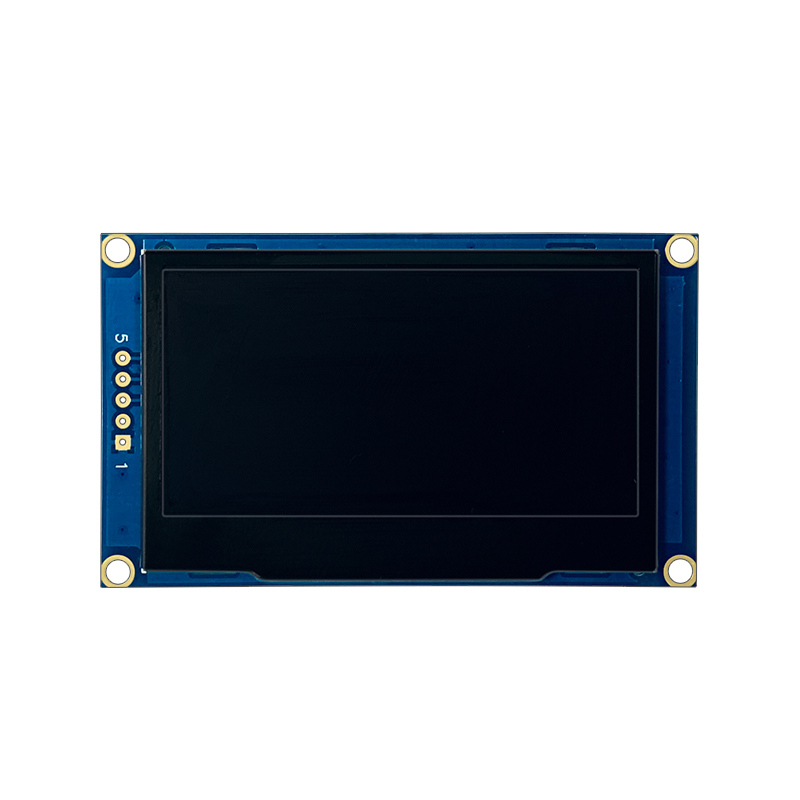

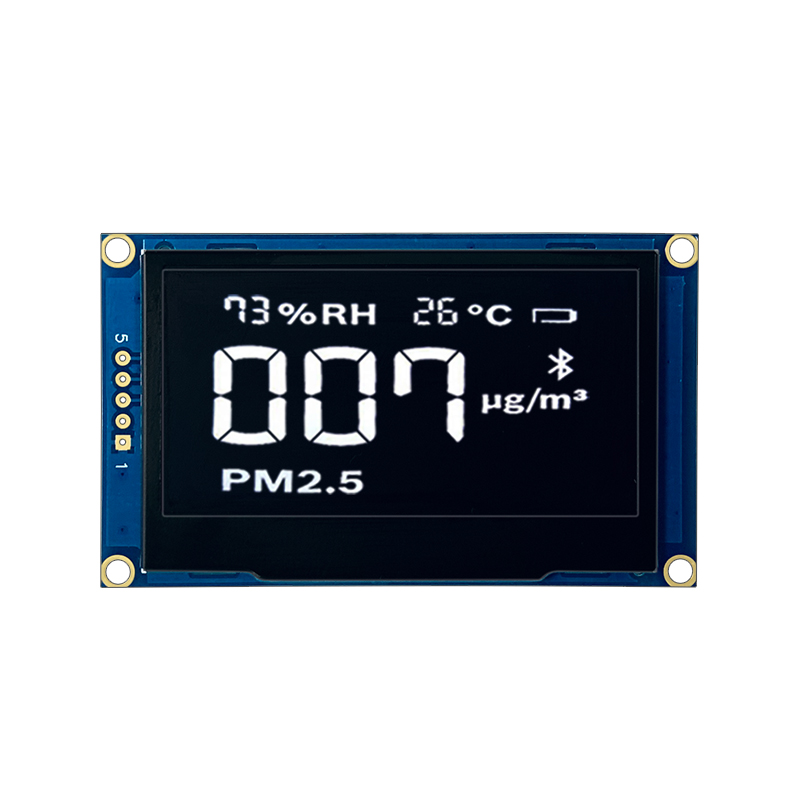

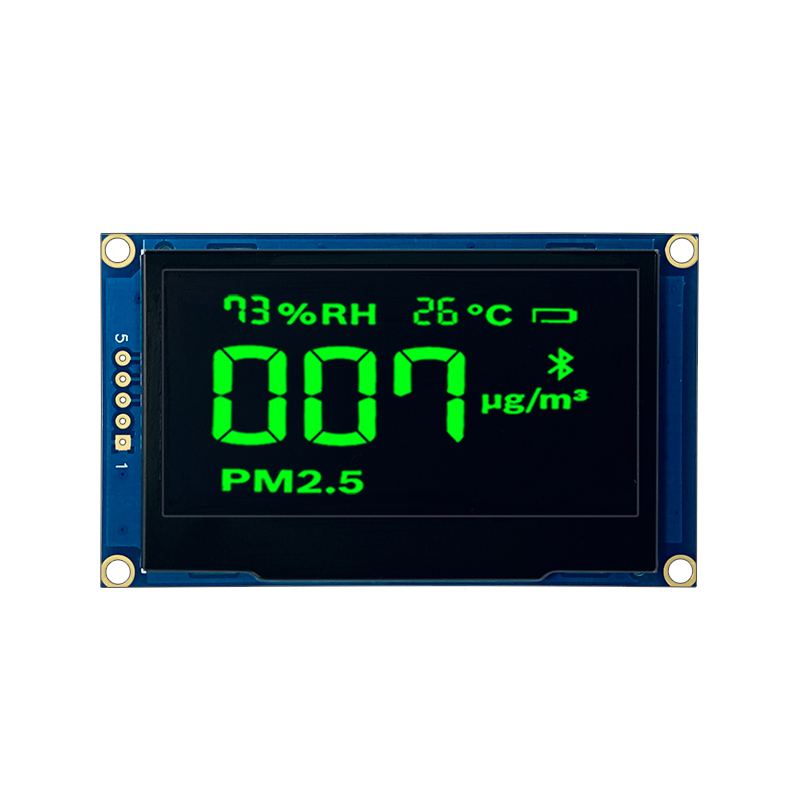

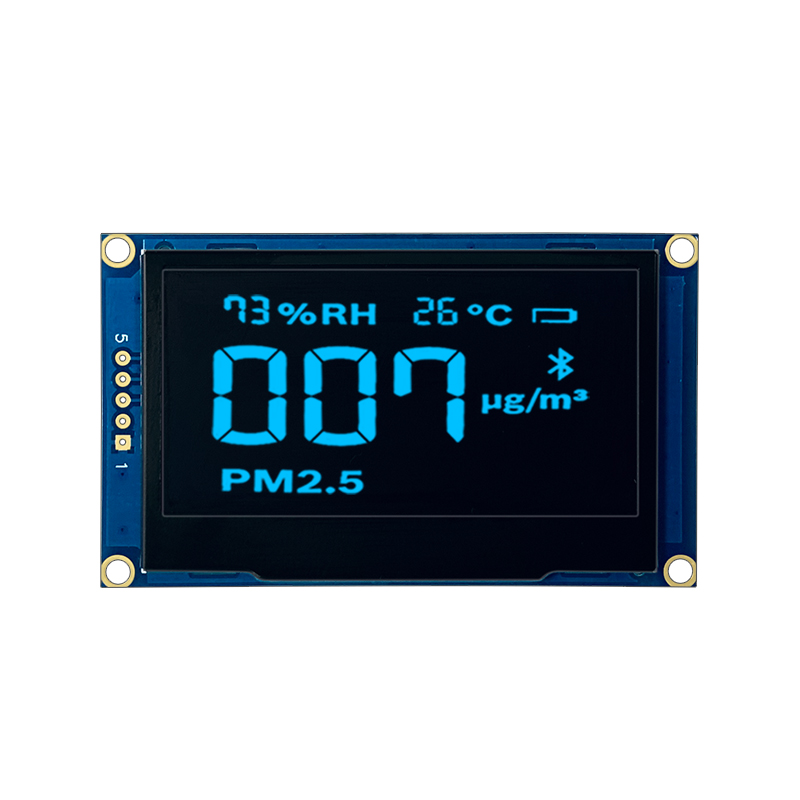

Product Introduction

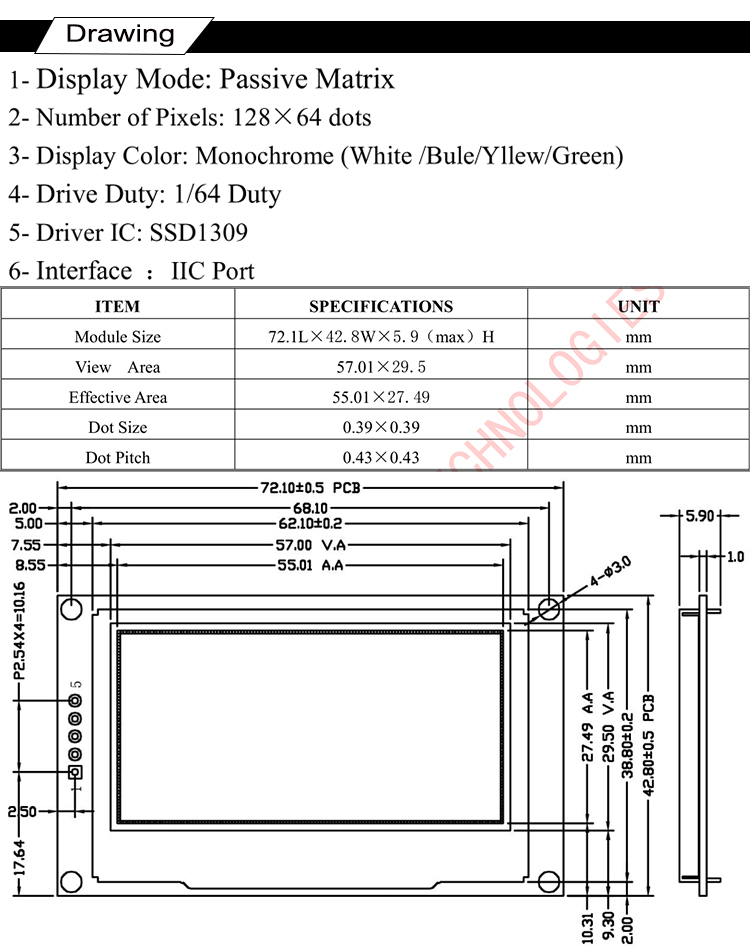

Mechanical Specifications
| Display Type: | oled display |
| Display Mode: | Passive Matrix |
| Module Size: |
72.1L×42.8W×5.9（max）H |
| Diagonal Screen size: | 2.42 inch |

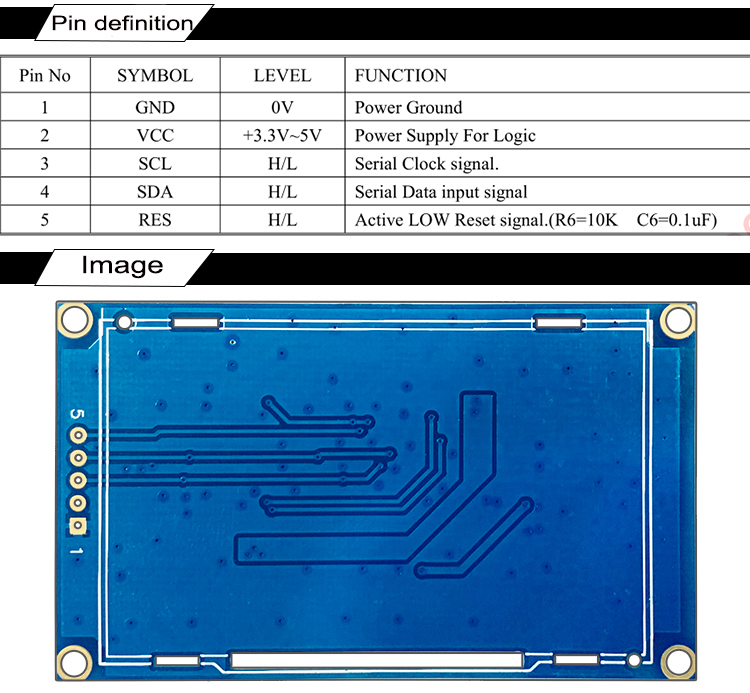

| Interface: |
IIC Port |
| Drive Duty: |
1/32 Duty |
| Number of Pixels: |
128x64 dots |
| Panel Size: |
19.70 × 12.27 × 1.4 (mm) |
| Driver IC: |
SSD1309 |
| Active Area: |
55.01× 27.49(mm) |
| Pixel Pitch: |
0.43 x 0.43(mm) |
| Pixel Size: |
0.39 x 0.39 (mm) |
|
Weight: |
1.54 (g) |
|
Operating Temperature: |
-40~+85℃ |
