1. Display Specifications

1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White/Blue/Green/Blue)
3) Drive Duty: 1/88 Duty

4) Wide viewing angel: >160 degree

5) Brightness: 150 cd/m2

6) Dark Room Contrast: >2000:1

7) Sleep Mode Current for VCC: 1uA

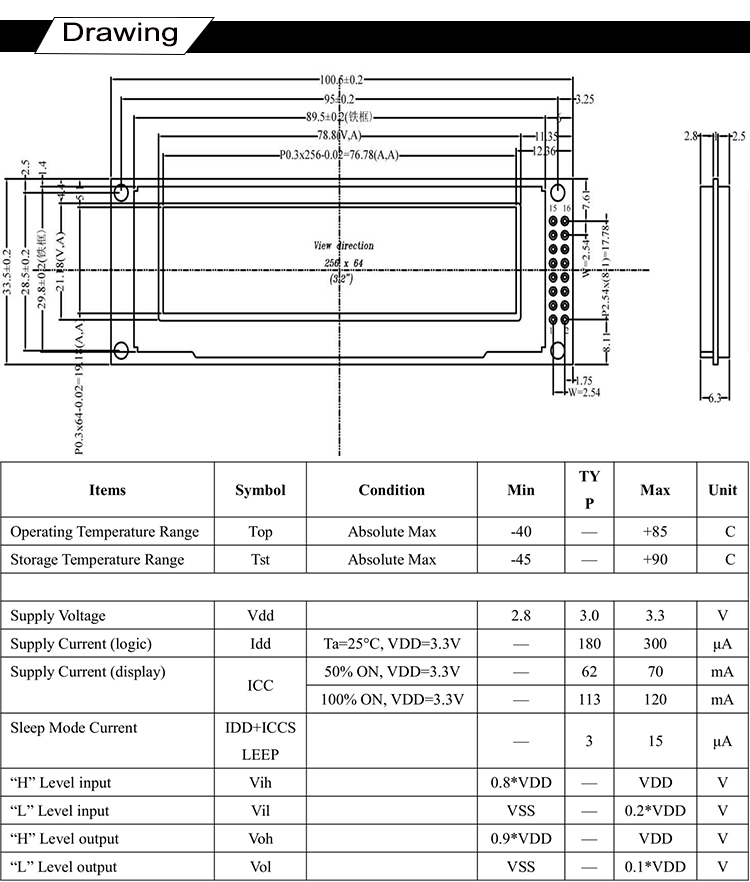

2. Mechanical Specifications

Display Type:	oled display module
Display Mode:	Passive Matrix
Model Number:	HG-073-2888TSWKG05
Diagonal Screen size:	3.12 inch

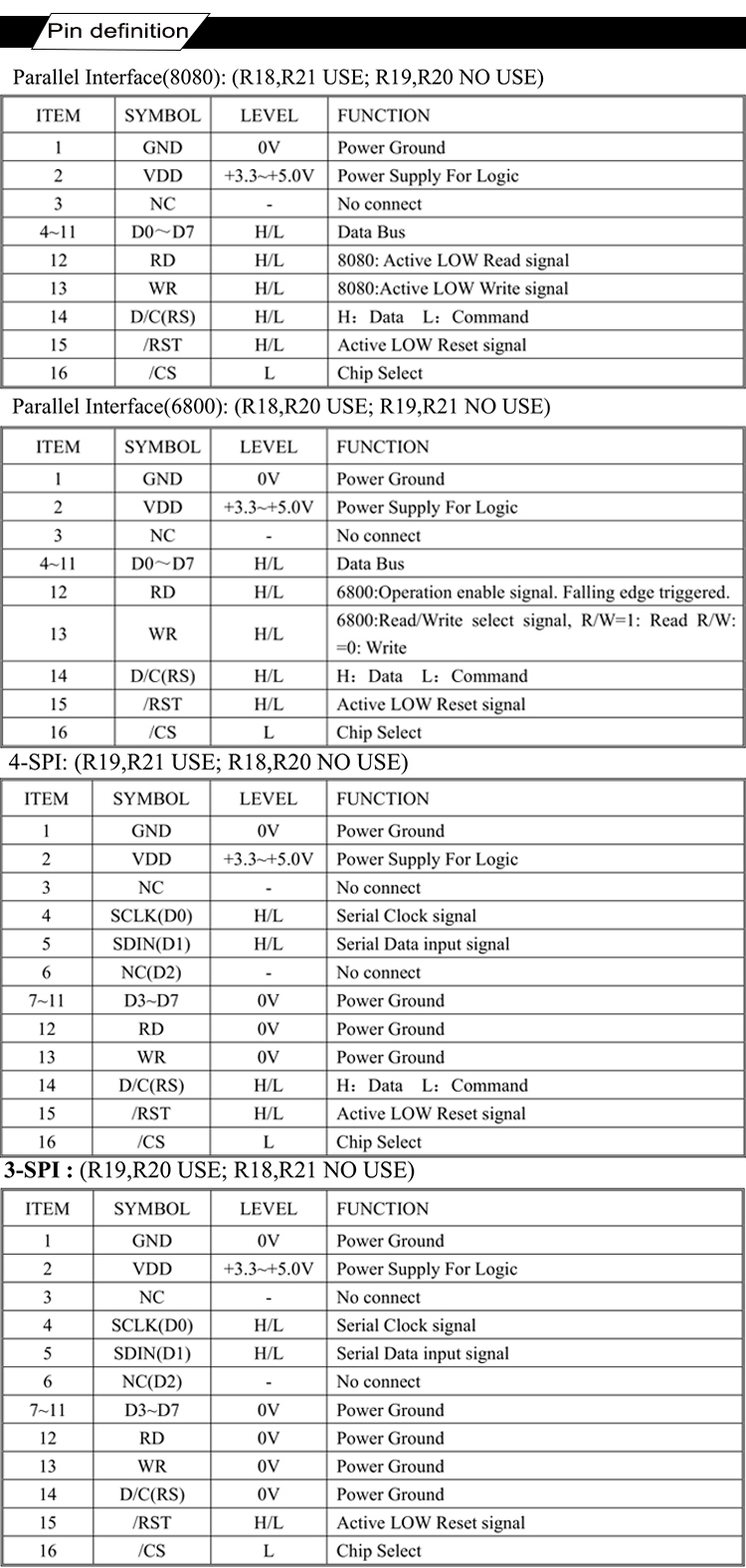

Interface:	8-BIT 68XX/80XX Parallel,4-wire SPI,3-wire SPI
Drive Duty:	1/88 Duty
Number of Pixels:	128x88
Module Size:	100.5(W) x33.5 (H) x 6.3(T)(mm)
Driver IC:	SSD1322
Active Area:	78.78 × 21.18(mm)
Pixel Pitch:	0.3 × 0.3(mm)
Pixel Size:	0.28 × 0.28 (mm)
Weight:	1.05 (g)
Operating Temperature:	-40℃~+85℃
