0.91 inch yellow oled display Module SSD1306 Drive I2C Interface 128*64 dots oled screen

  • 0.91 inch yellow oled display Module SSD1306 Drive I2C Interface 128*64 dots oled screen
  • 0.91 inch yellow oled display Module SSD1306 Drive I2C Interface 128*64 dots oled screen
  • 0.91 inch yellow oled display Module SSD1306 Drive I2C Interface 128*64 dots oled screen
  • 0.91 inch yellow oled display Module SSD1306 Drive I2C Interface 128*64 dots oled screen
  • 0.91 inch yellow oled display Module SSD1306 Drive I2C Interface 128*64 dots oled screen
0.91 inch yellow oled display Module SSD1306 Drive I2C Interface 128*64 dots oled screen 0.91 inch yellow oled display Module SSD1306 Drive I2C Interface 128*64 dots oled screen 0.91 inch yellow oled display Module SSD1306 Drive I2C Interface 128*64 dots oled screen 0.91 inch yellow oled display Module SSD1306 Drive I2C Interface 128*64 dots oled screen 0.91 inch yellow oled display Module SSD1306 Drive I2C Interface 128*64 dots oled screen

Product Name

0.91 inch yellow oled display Module SSD1306 Drive I2C Interface 128*64 dots oled screen

Product Properties

0.91inch Pixel size：128*32 Interface:I2C Driver IC:SSD1306
Email Us To Inquiry
FacebookTwitterLinkedInAddThis

Product Introduction

Product Description:

Display Mode: Passive Matrix
Display Color:: white/yellow/Monochrome (Yellow&Blue)
Drive Duty:: 1/64 Duty

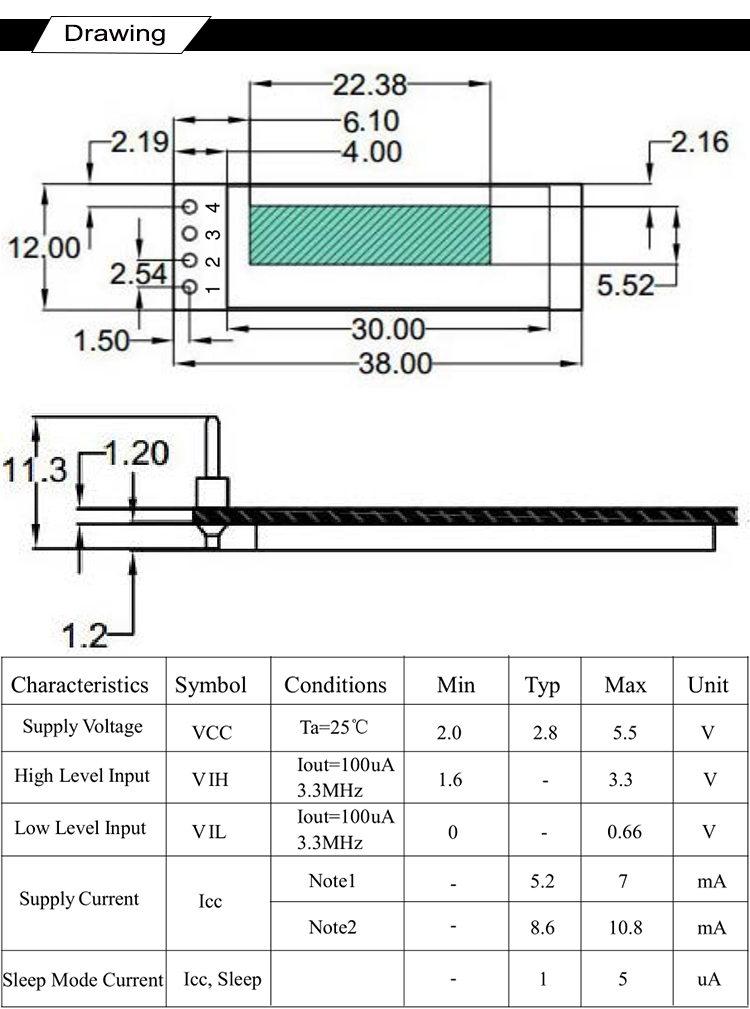

Dimensions : 38*12（mm）
Viewing Area : 22.384(L) x 5.584 (W) mm
Active Area: 21.744 (L) x 10.864 (W) mm
Dot Pitch: 0.175 (W) x 0.175 (H) mm
Dot Size: 0.159(W) x 0.159(H) mm
Pin QTY 4pin
Interface I2C
Operating Voltage 2.0V~5.5V
