MICRO OLEDOS DISPLAY | OLED Microdisplay

0.49 inch Micro OLEDos Display 1800nits 1920x1080

Product Introduction

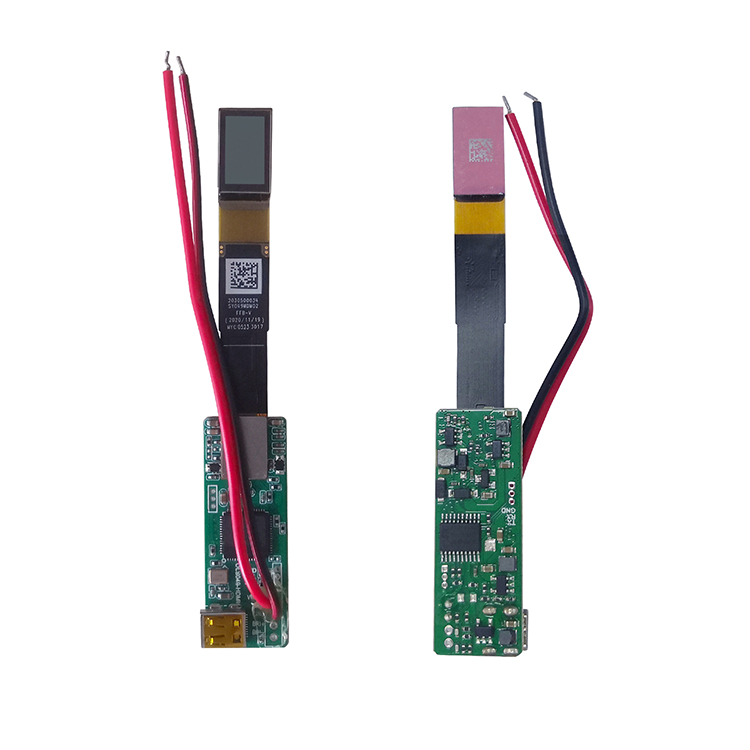

0.49 inch Micro OLED Display FHD 1920x1080 1800NITS MIPI Interface for AR VR

Product Description

This 0.49 inch Micro OLEDos Display, is an active matrix color OLED module based on single-crystal silicon transistors,with a high resolution FHD 1920xrgbx1080 and the birghtness is up 1800nits in typical,this micro display integrates panel driver and logic driver, and realizes small size, light weight, low power consumption and high resolution.

Applications: Augmented Reality, View finders, Head mounted displays, etc.

Specification

Product model:	HA049WDM02
Size:	0.49 inches

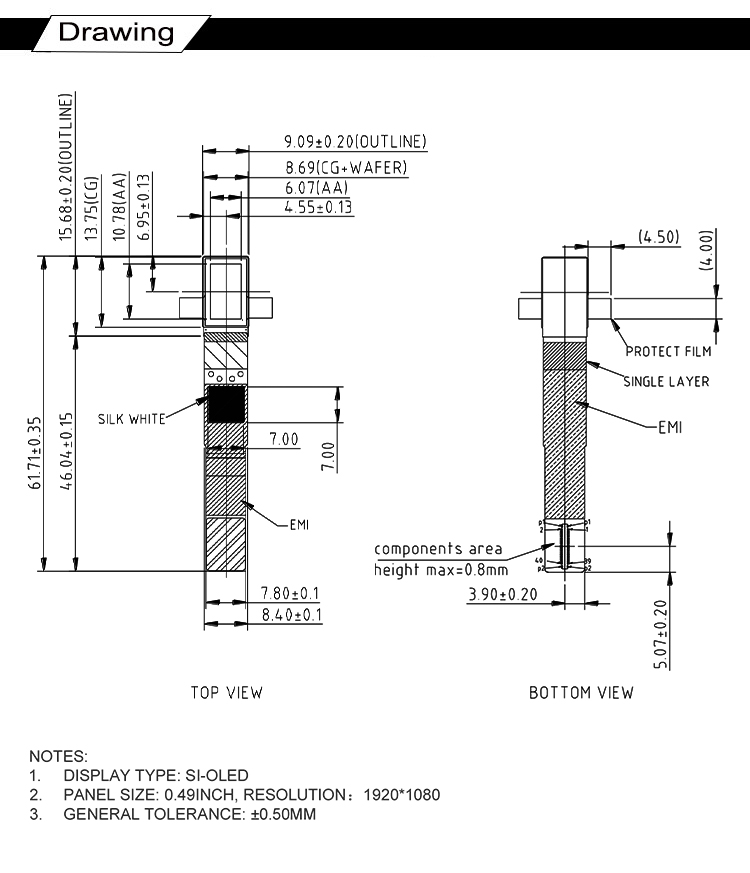

Appearance size (mm)	10.783mm x 6.065mm / 0.49'' diagonal

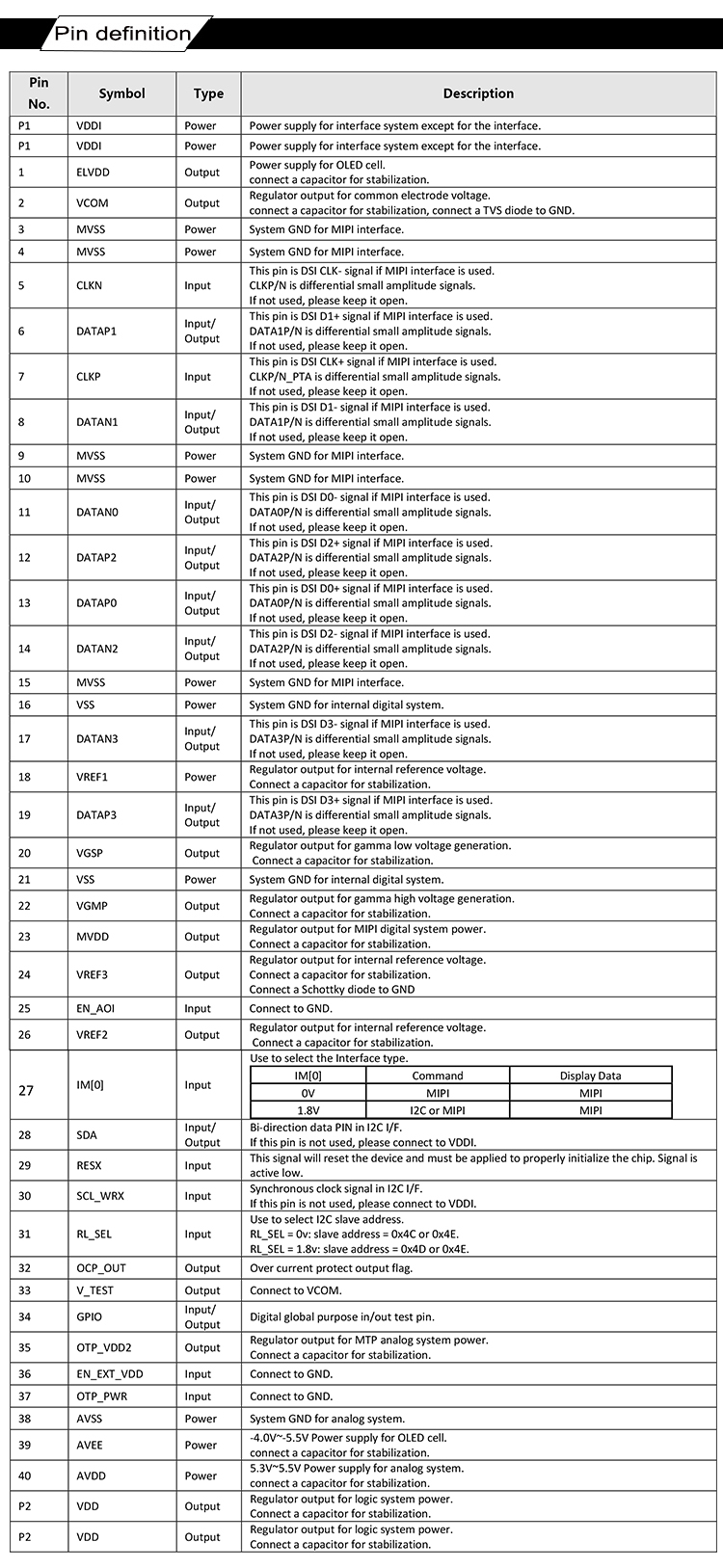

Interface	MIPI
Resolution:	1920 * 1080
Brightness:	1800cd/m² typical
Working temperature:	-20 ~ 70 ° C
Storage temperature:	-40 ~ 80 ° C
