Product Introduction

DESCRIPTION

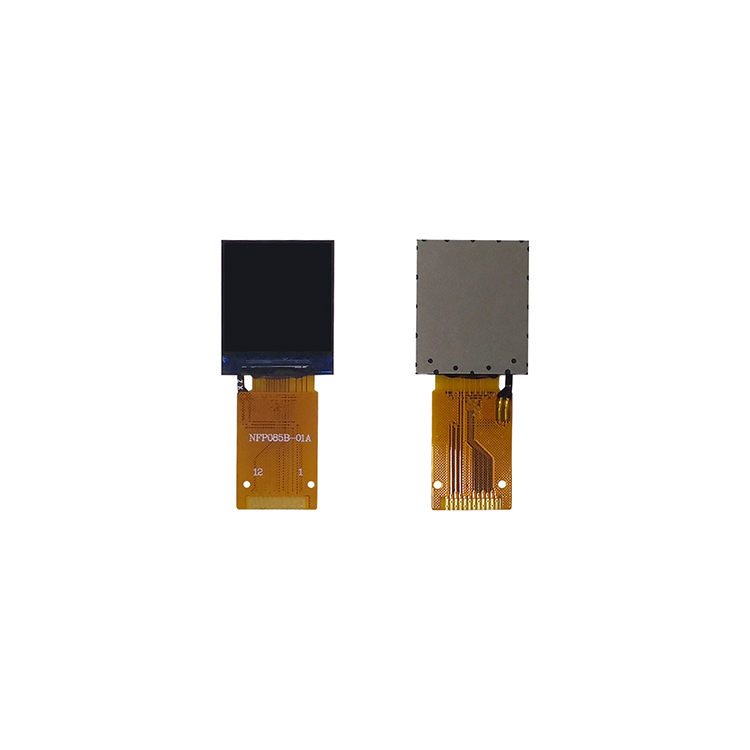

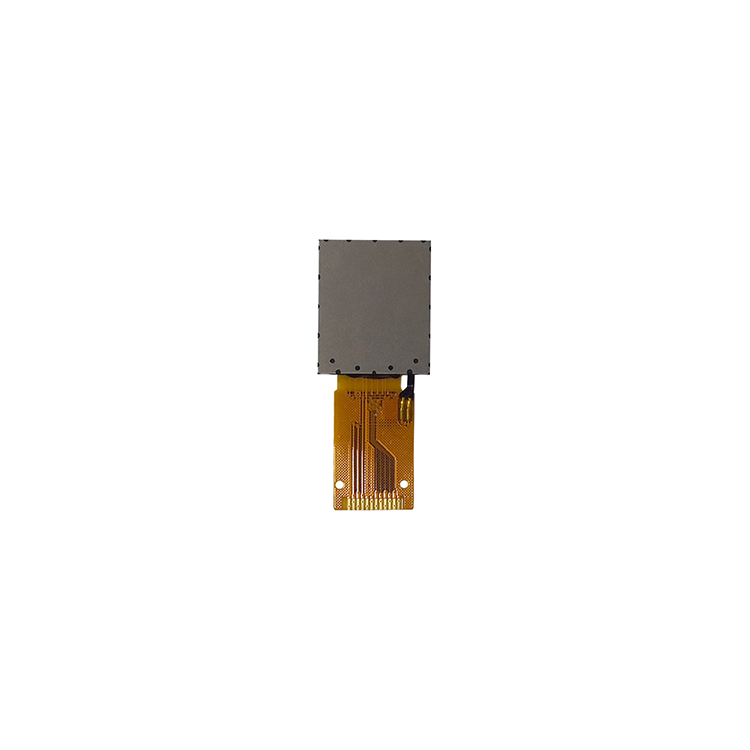

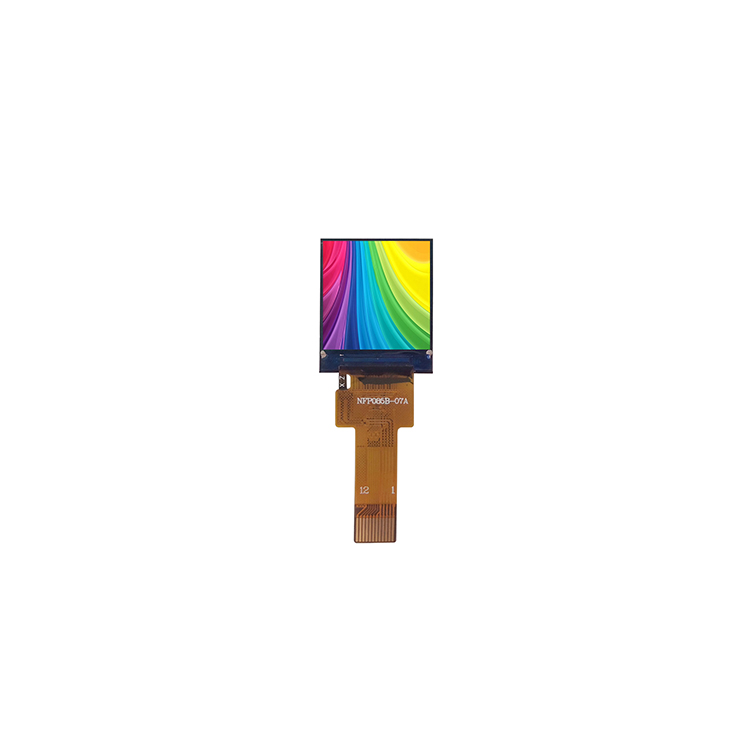

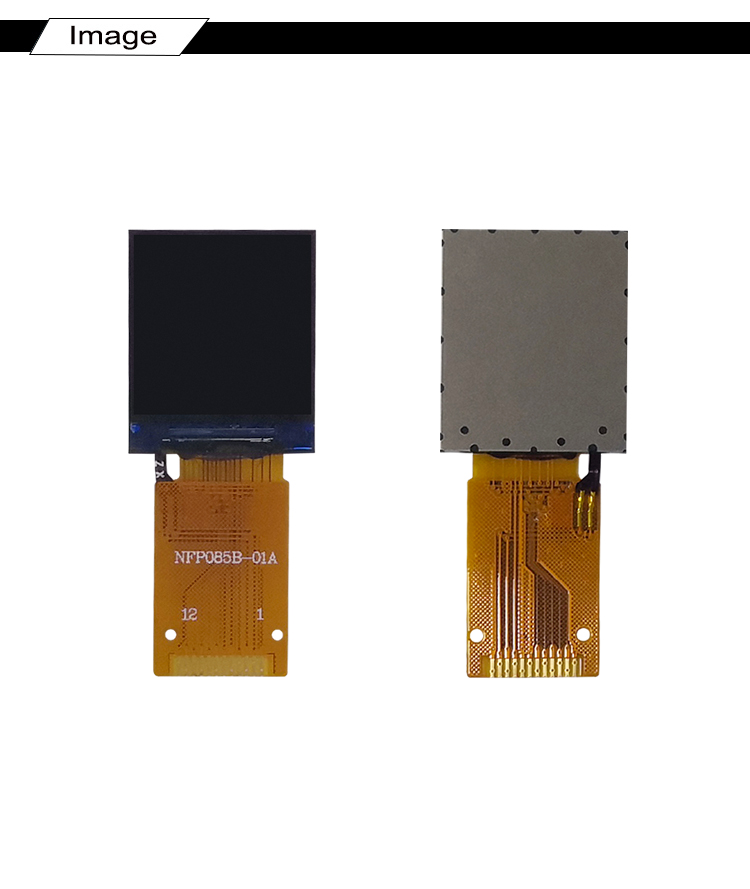

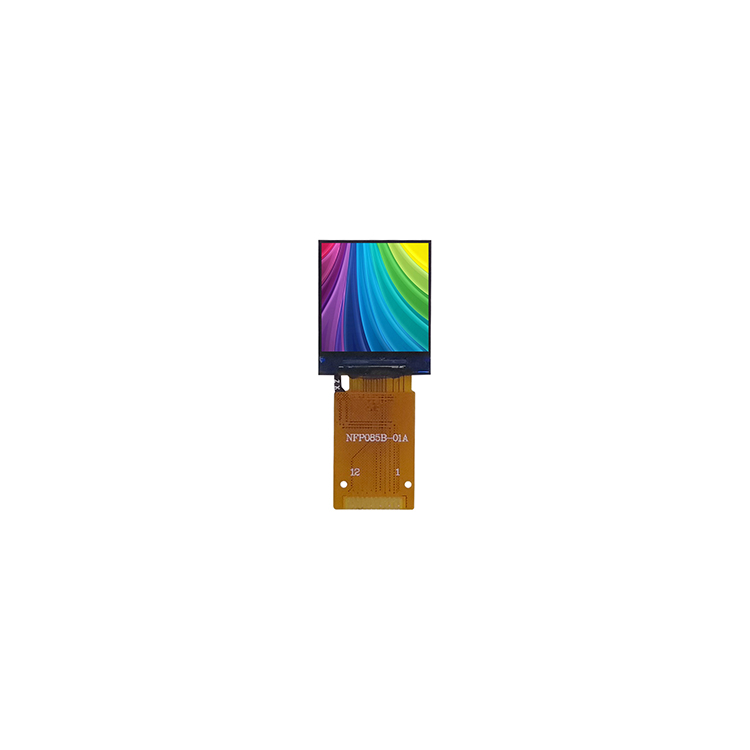

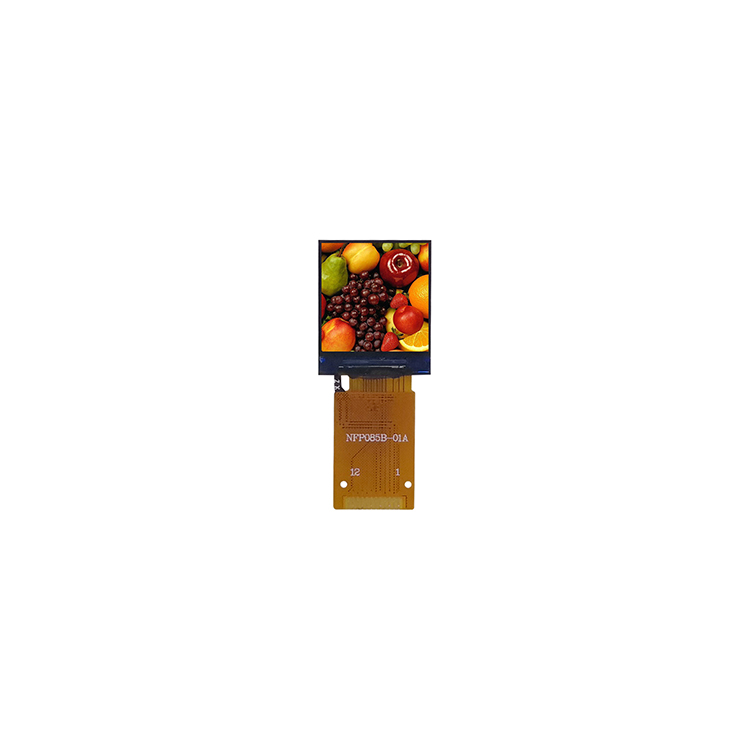

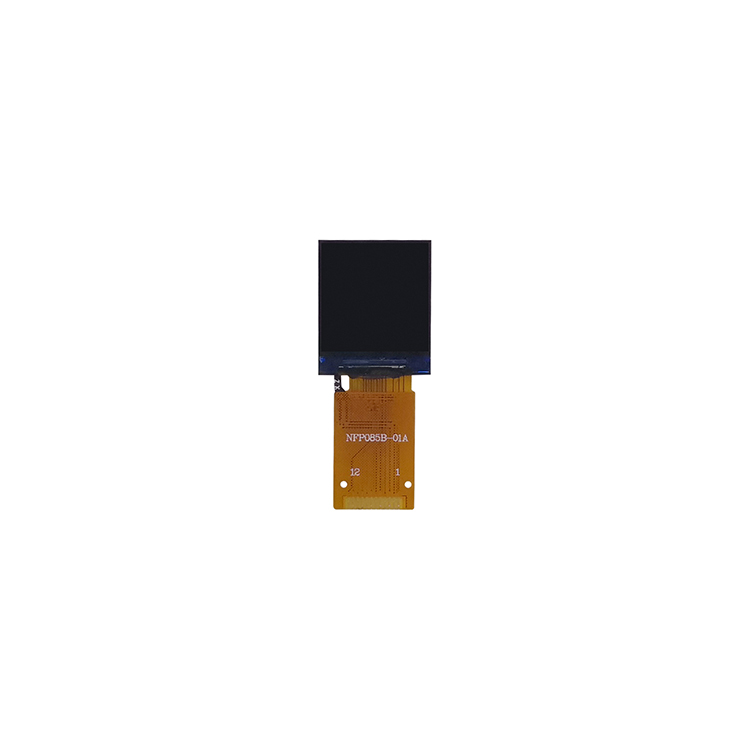

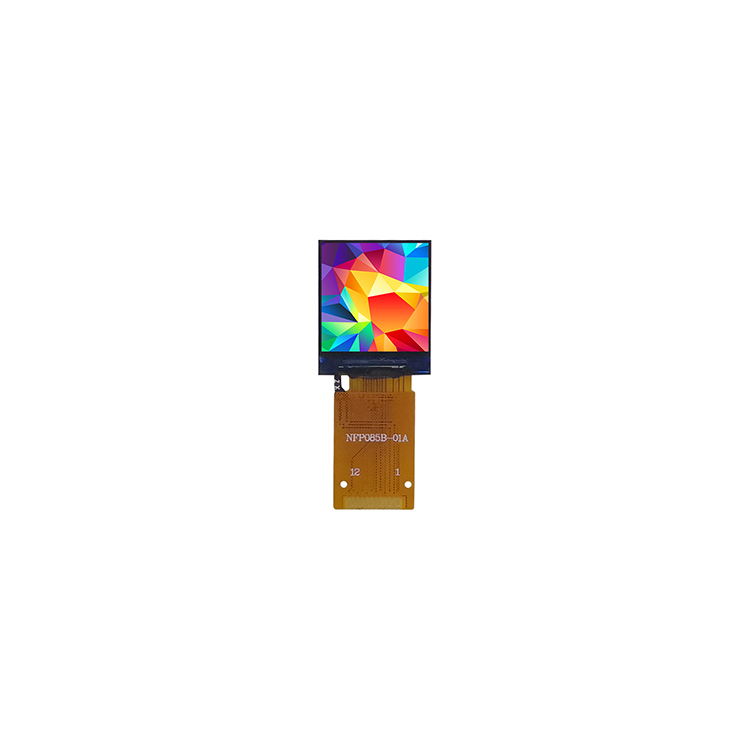

HICENDA TFT 0.85 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin

Film Transistor). It is composed of a color TFT - LCD panel, driver IC, FPC and a back light unit. The module display area contains 128*128 pixels. This product accords with ROHS environmental criterion.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	color active matrix
Model Number:	HT---1212TBWIG41-H12
Diagonal Screen size:	0.85 inch

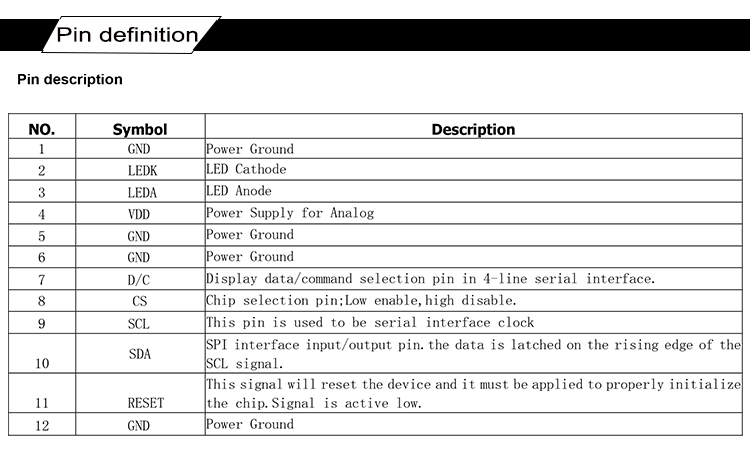

Interface:	SPI4 LINE
Luminance(cd/m2):	260 (TYP)
Number of Pixels:	128X128

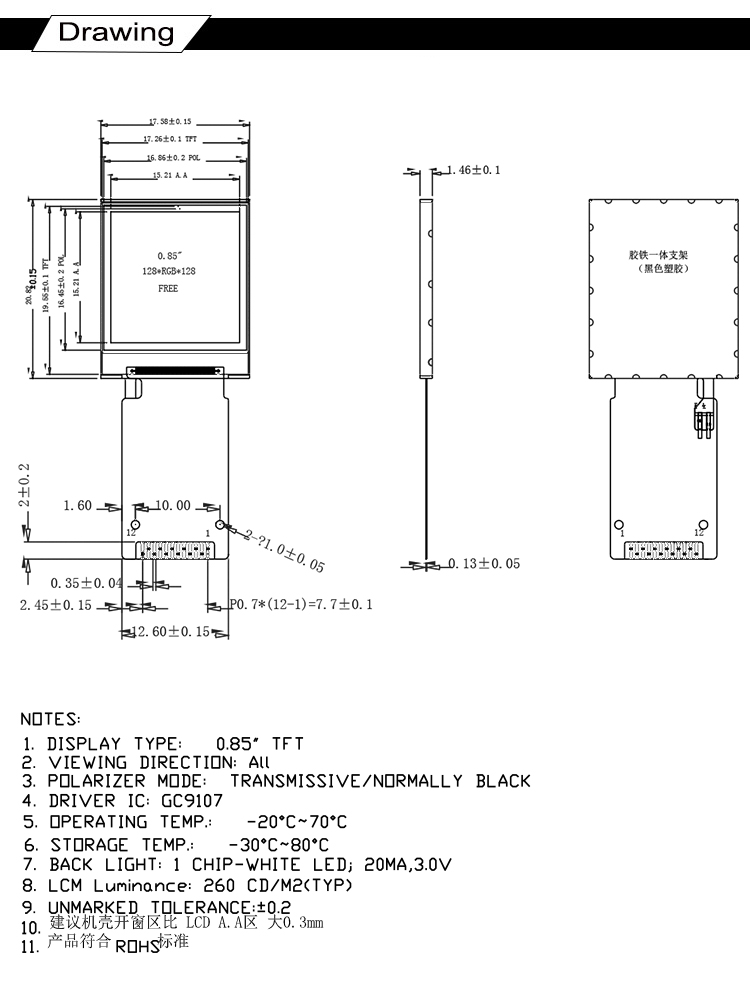

Panel Size:	17.58(H) x 20.82(V) x1.5(D) mm
Driver IC:	GC9107
Active Area:	15.2064(H) x 15.2064 (V) mm
Pixel Pitch:	39.6 (H) x 118.8(V) um
Viewing Direction:	All View
Weight:	TBD
Operating Temperature:	-20~70°
