Product Name

Hot 2.08" 2.08 inch 256*64 OLED LCD Display Module Driver IC SH1122 7 pin SPI & I2C Interface blue /white all Viewing Angle

Product Properties

Display Size:2.08 inch Resolution: 256*64 Interface: SPI,I2C Driver IC:SSD1322
Email Us To Inquiry
FacebookTwitterLinkedInAddThis

Product Introduction

Hot 2.08" 2.08 inch 256*64 OLED LCD Display Module Driver IC SH1122 7 pin SPI & I2C Interface blue /white all Viewing Angle

Production Description:

Display Type:  oled display
Display Mode:  Passive Matrix
Model Number:

HG-027-12864MB20P01

Diagonal Screen size: 2.08 inch

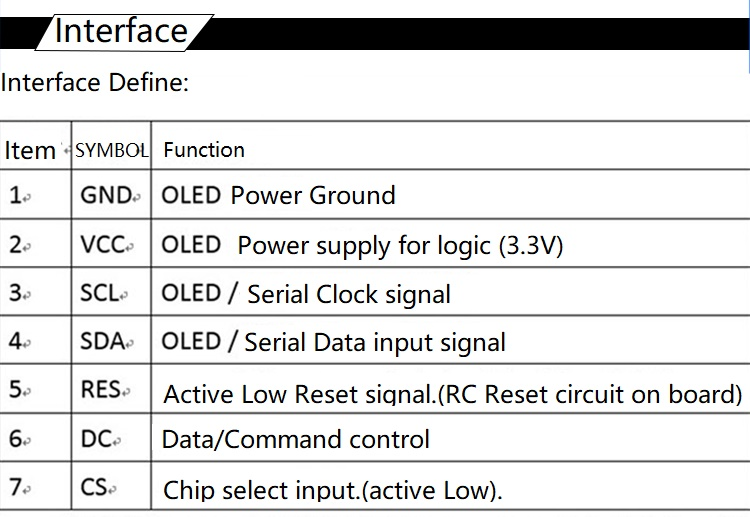

Interface:

 SPI, I2C

Drive Duty:

1/32 Duty

Number of Pixels:

256 x 64

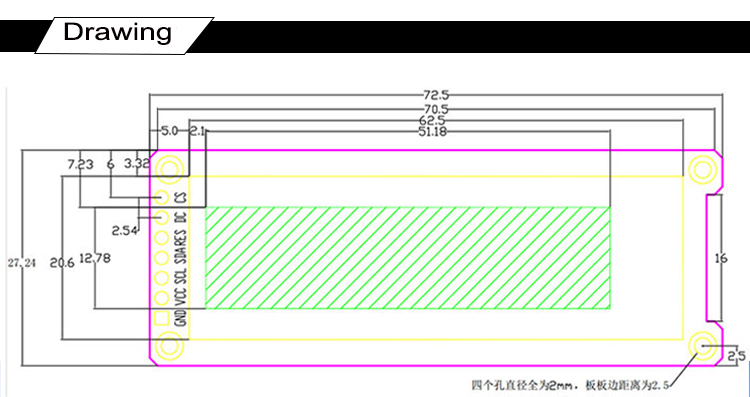

Panel Size:

100.5(W)x33.5(H)x6.3Max(T)

Driver IC:

SSD1322

Active Area:

72.50(W)x27.24(H)

Pixel Pitch:

0.30(W)x0.30(H)

Pixel Size:

0.28(W)x0.28(H)

Weight:

TBD

Operating Temperature:

-40~85°
