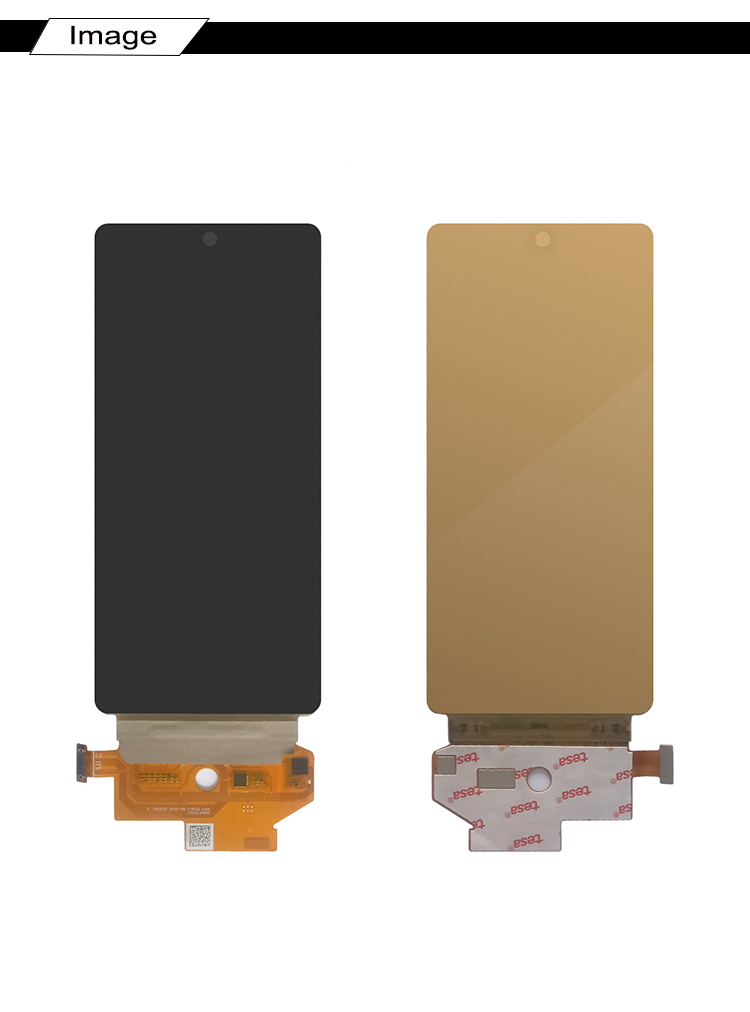

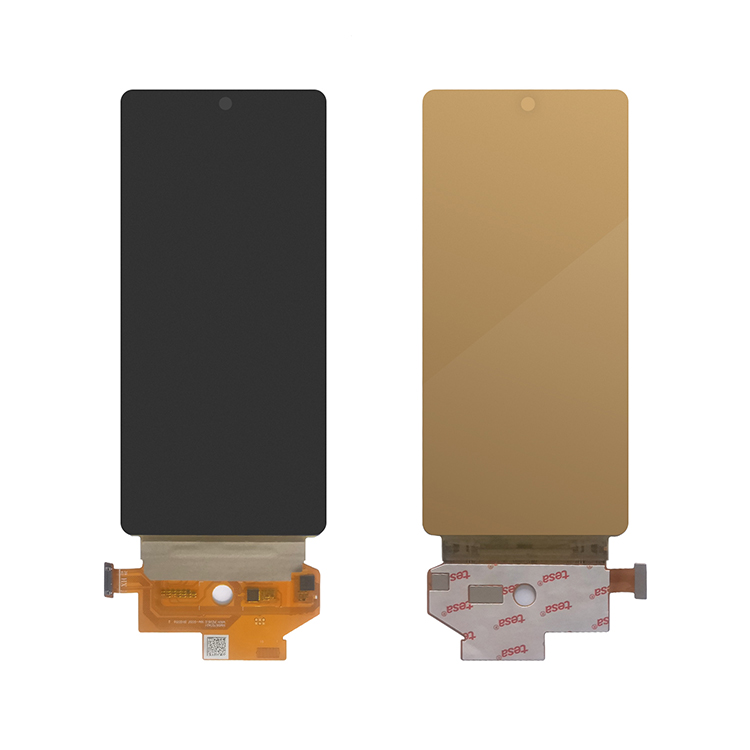

The HAM0667-T flexible oled display is a Color Active Matrix Organic Light Emitting Diode Display (OLED). The matrix employsLow Temperature Poly Si Transistor as the active element. It is a top emission display type. It has a 6.67 inch diagonally measured active display area with FHD 2400×1080 high resolution. Each pixel is divided into Red, Green and Blue sub-pixels.. Gray scale or the brightness of the sub- pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16.7M colors. The curved AMOLED display has been designed to apply the interface method that enables high speed,low EMI, eDP interface with PSR. The bendable OLED display is intended to support applications where thin thickness,high contrast ratio, high color gamut. The curved oled display characteristics provide an excellent foldable display forPortable or Monitor mode such as tablet or notebook PC.

GENERAL SPECIFICATION

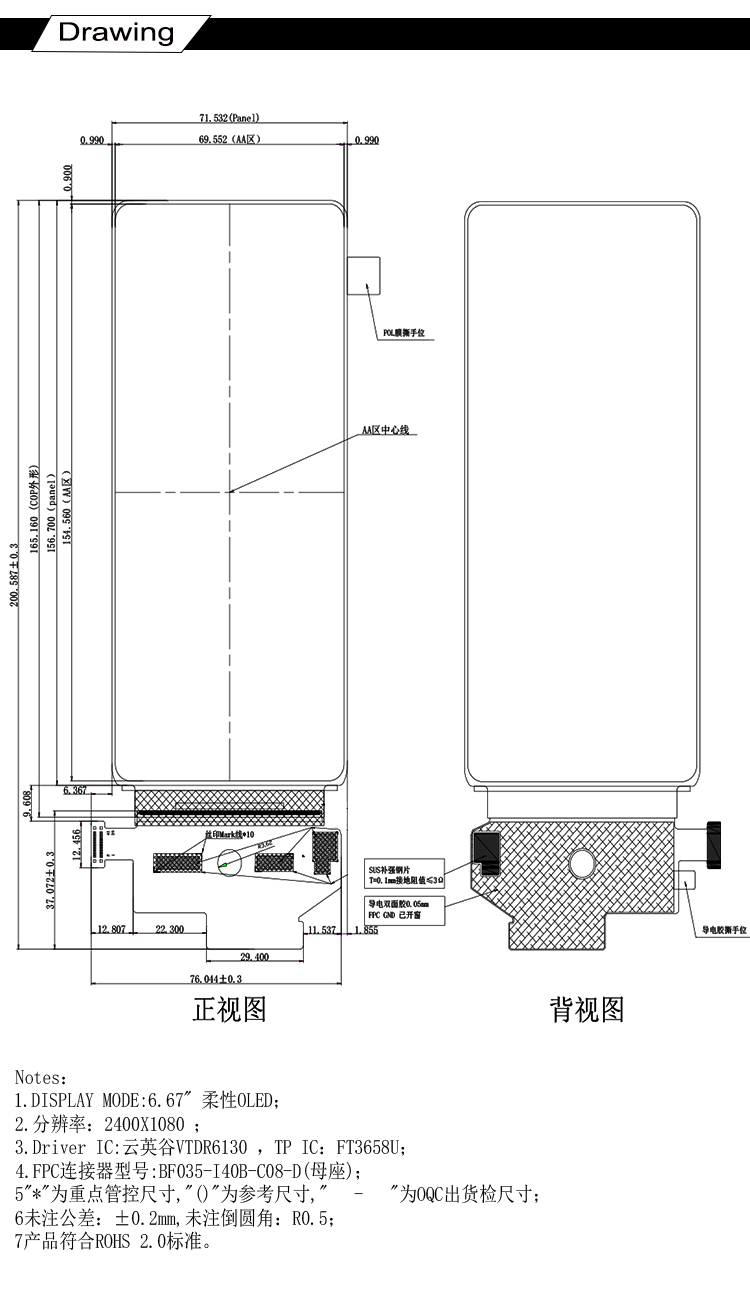

DRAWING

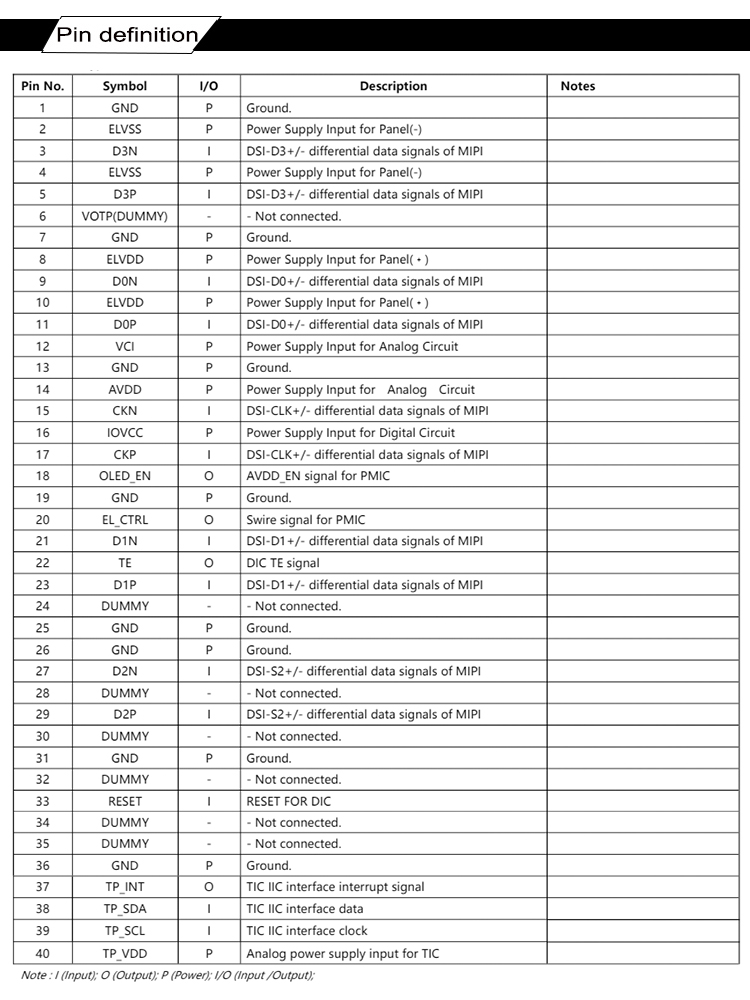

INTERFACE PIN FUNCTION
