Microdisplay 0.71 inch OLED Display 1920 (RGB)×1080
Product Description

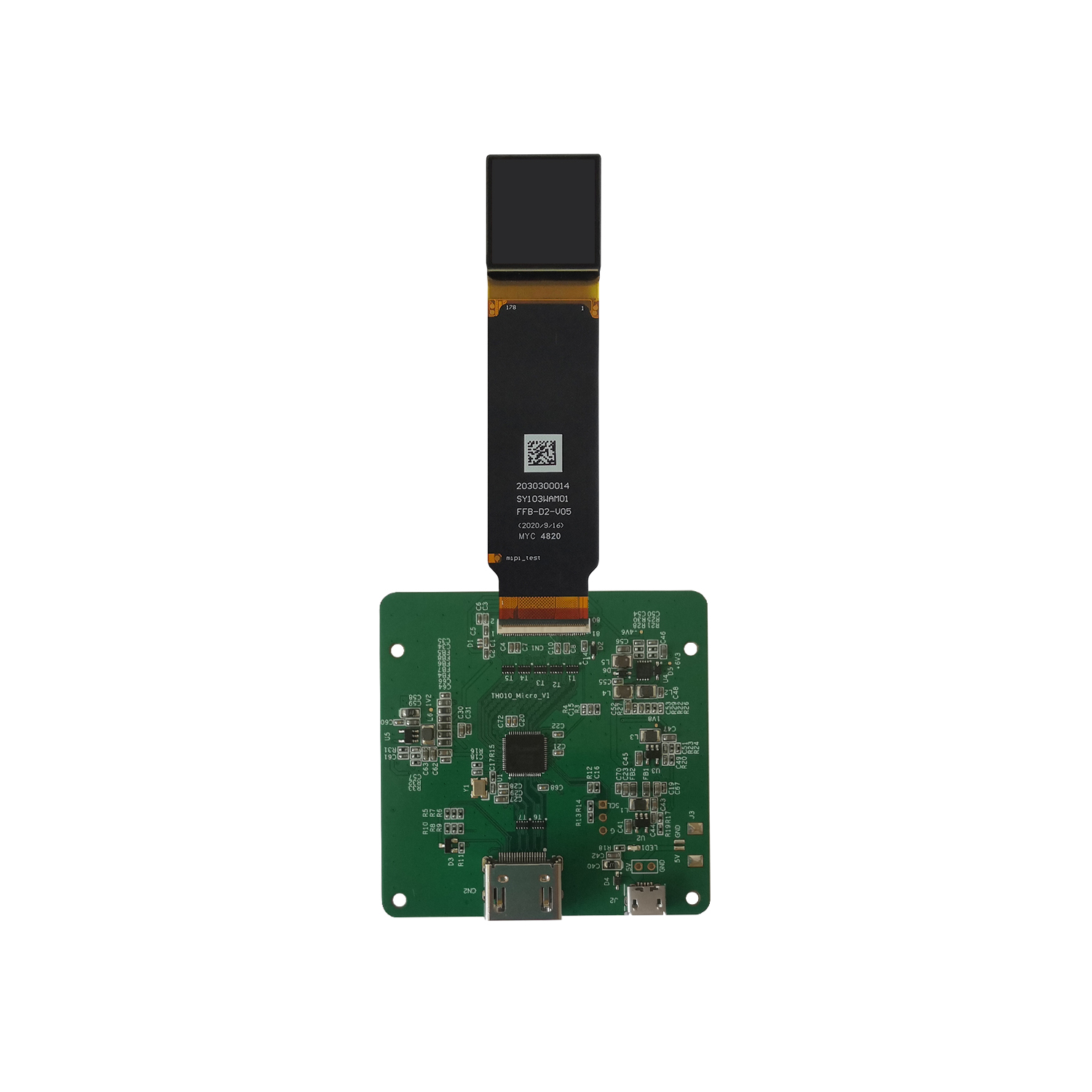

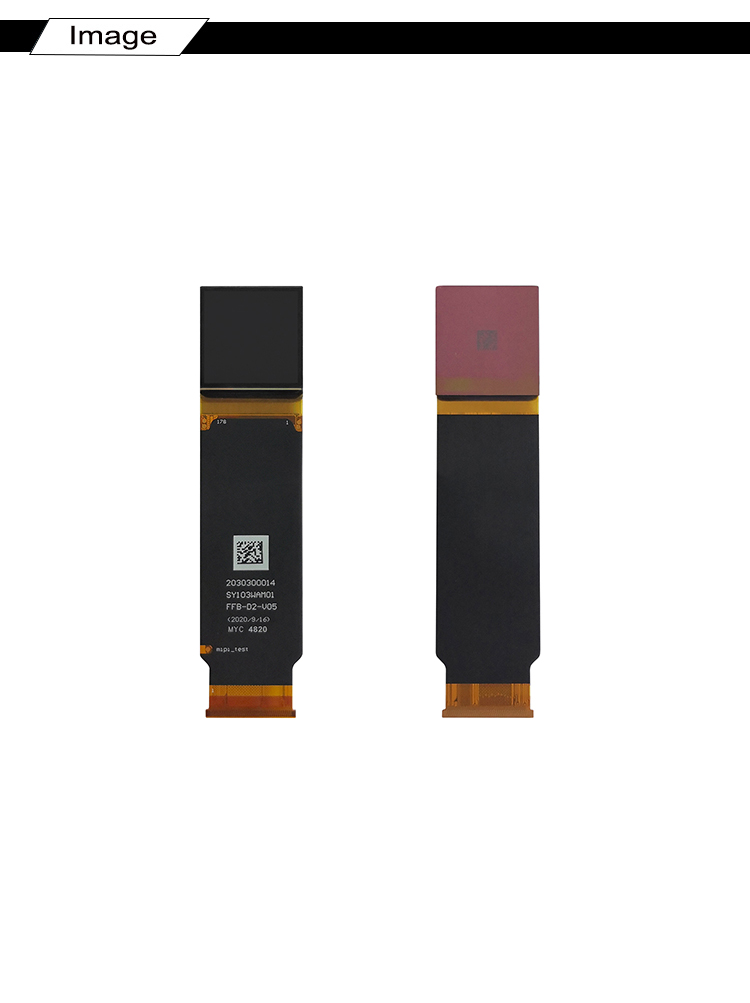

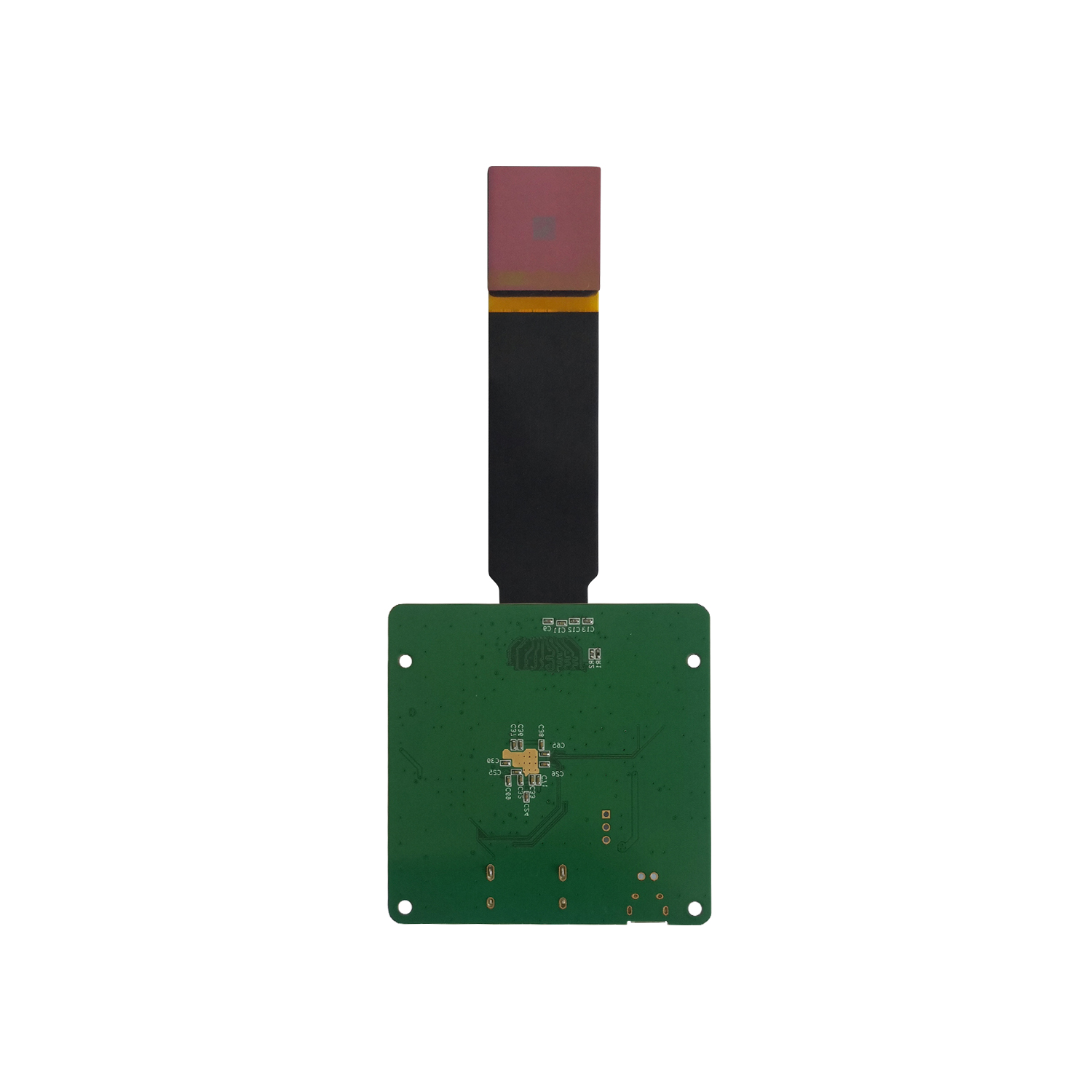

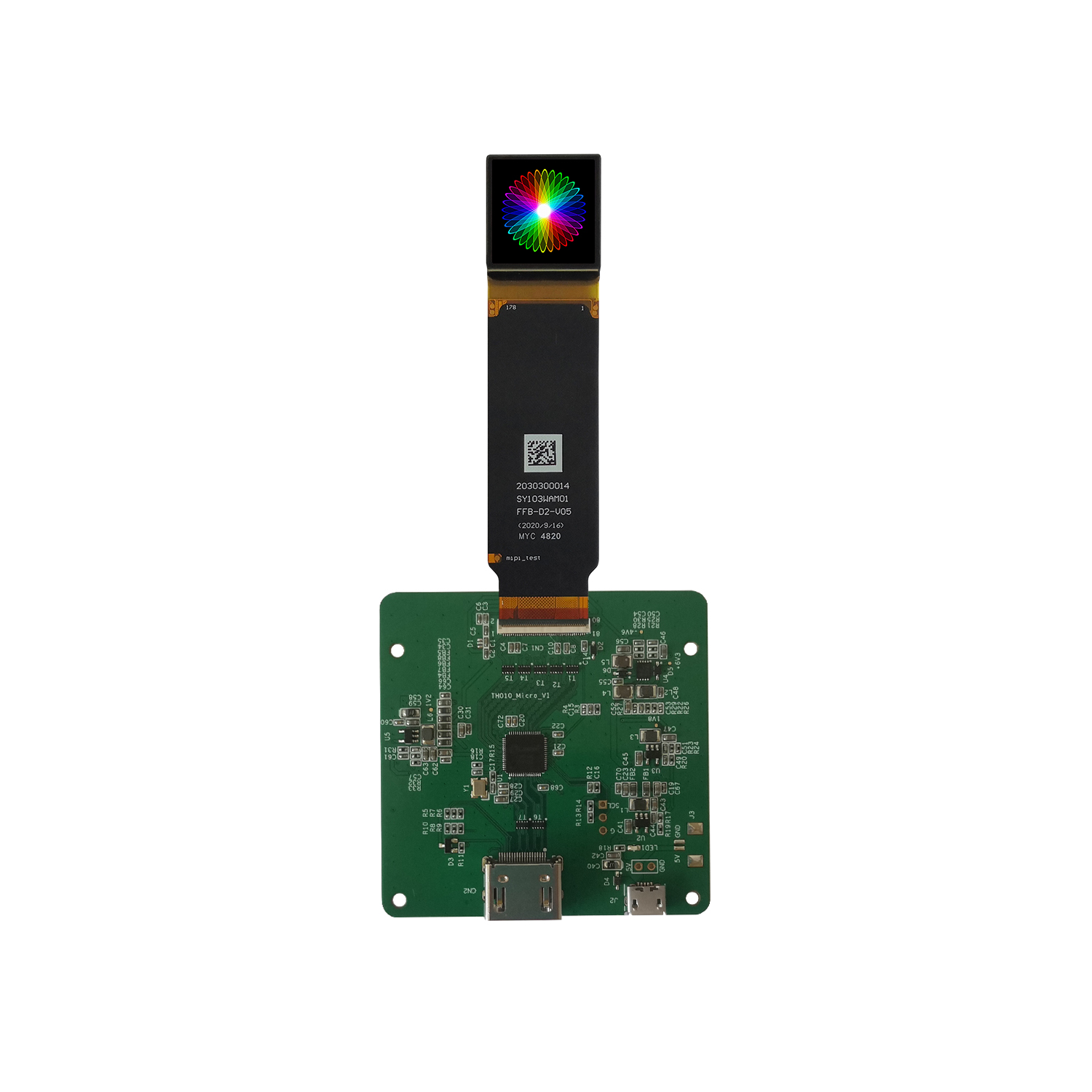

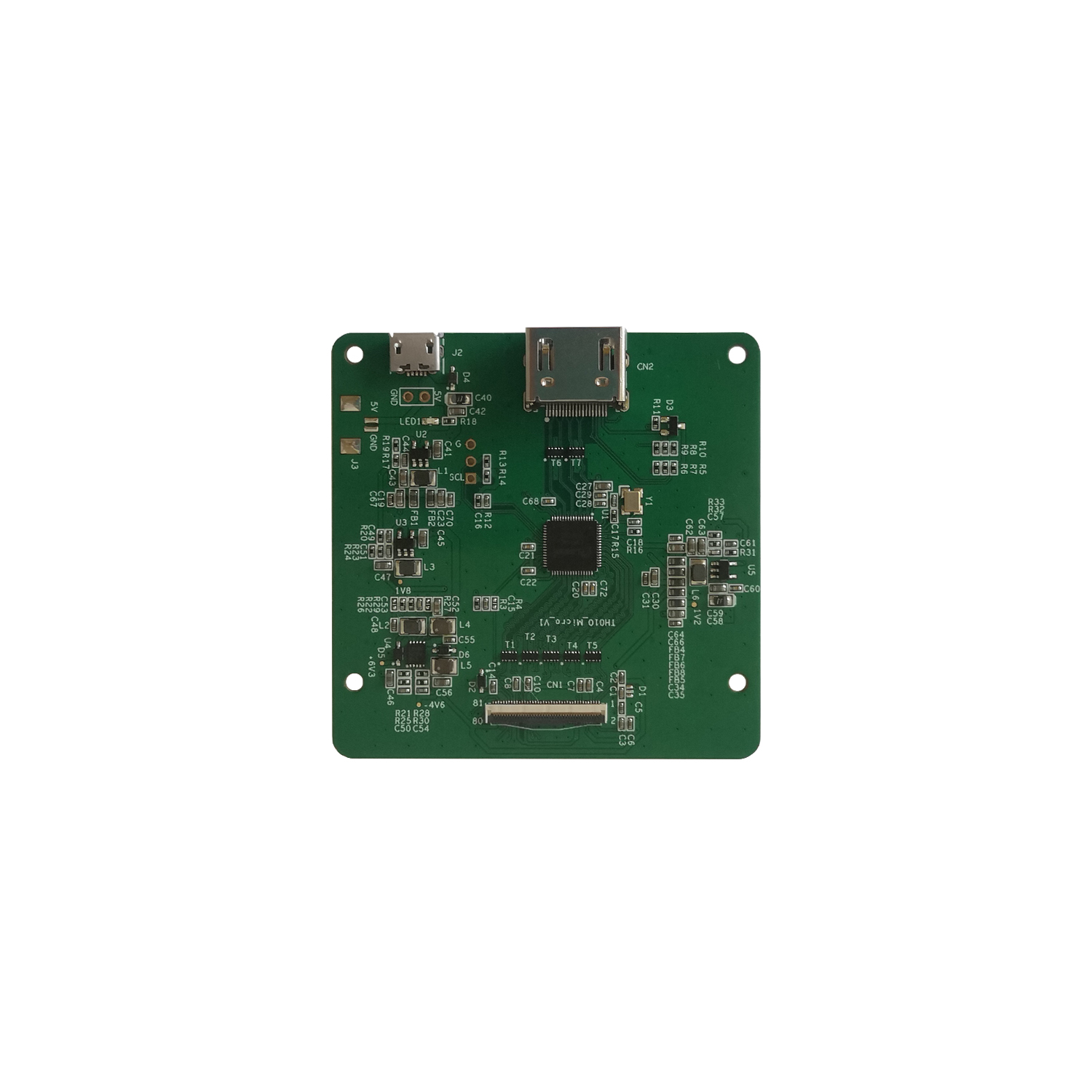

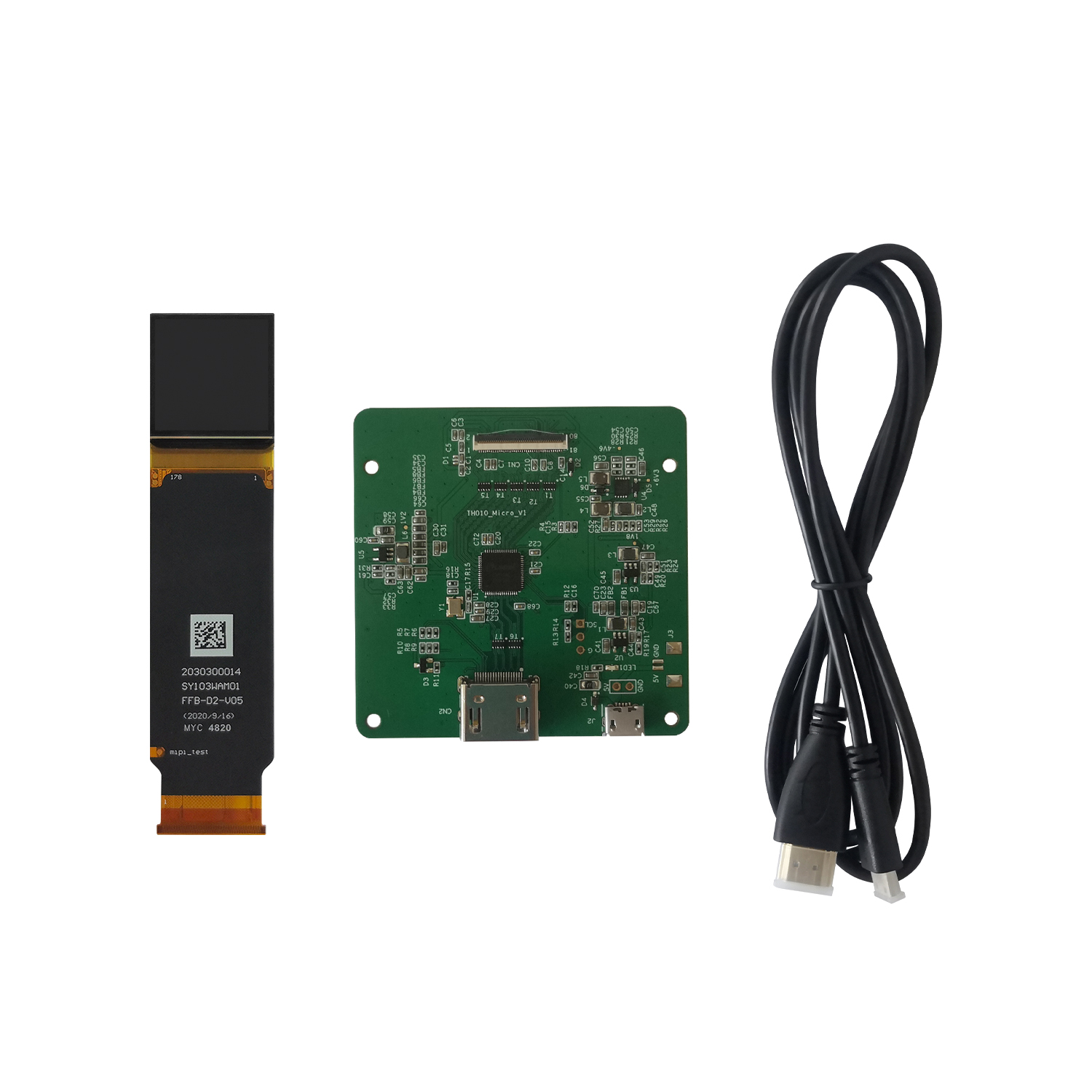

1.03 inch high resolution micro oled display 2560*2560 mipi dsi interface oled with HDMI board
(Applications: View finders, head mounted displays, very small monitors etc.)
General Specification
| Parameters | Specification |
| Size | 1.03 inch |
| Resolution | 2560*2560 dots |
| Pixel Size | 7.2μm x 7.2μm |
| Active Area | 18.432mm x 18.432mm |
| Brightness | 1800cd/m² typical |
| Contrast Ratio | 500,000:1 typical |
| Operating Voltage |
VDDI=1.8V +/- 10% AVDD=5V~6V AVEE=-4V~-6V VDD=1.2V |
| Interface | MIPI (1-port C-PHY/2-port D-PHY) |
| Frame Rate | 90Hz |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature |
-40°C to +85°C |
|
|
|

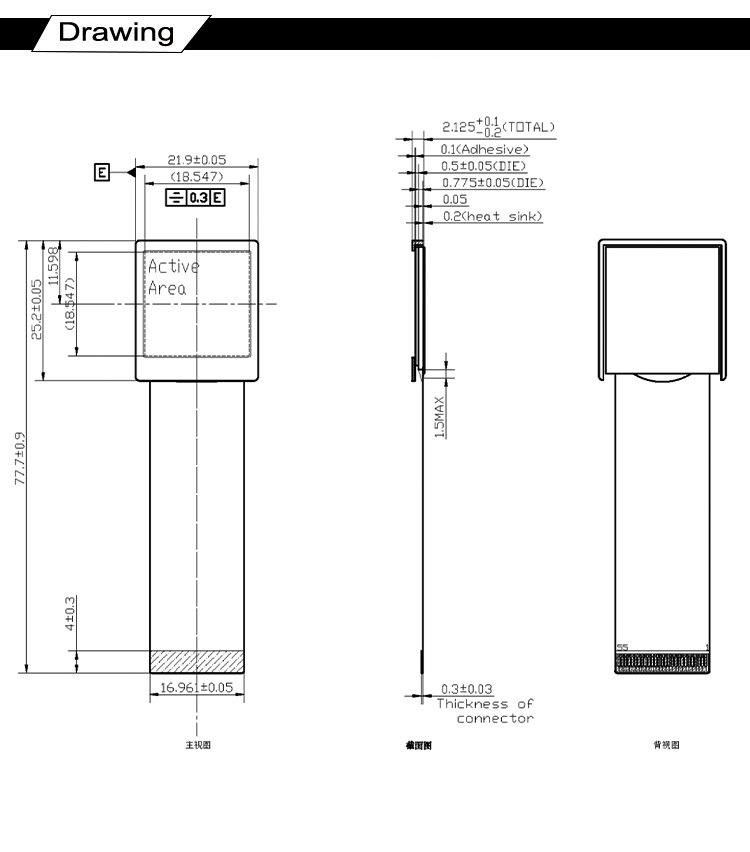

DRAWING

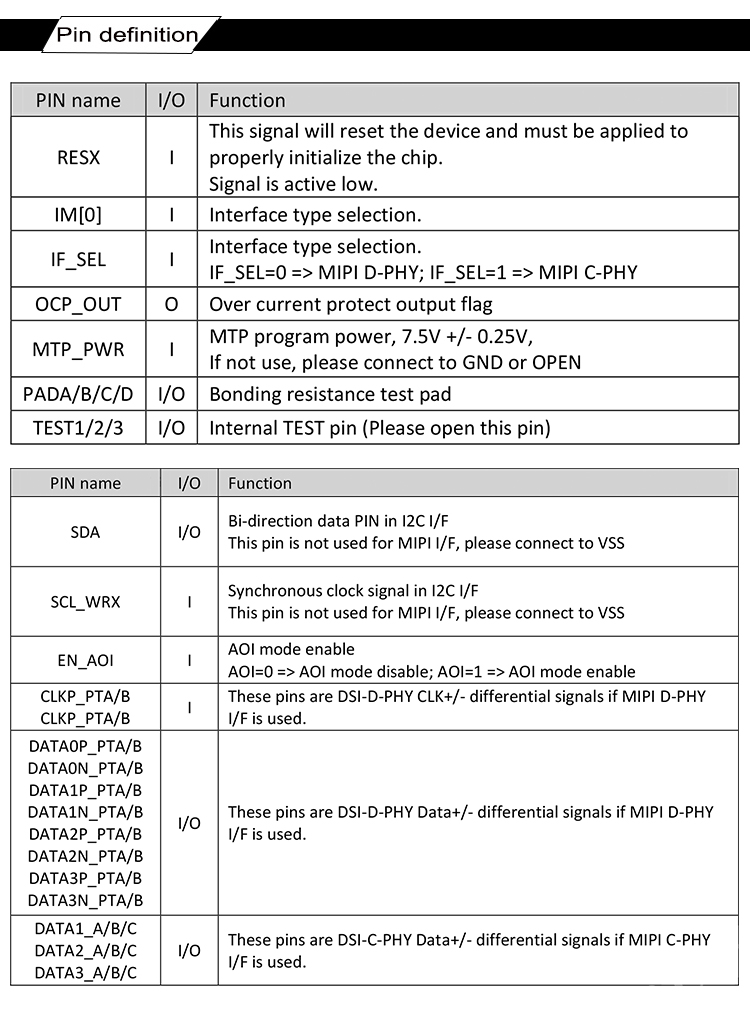

INTERFACE PIN FUNCTION
