Reflective Display 2.9 inch Sunlight Readable TFT LCD 168x384

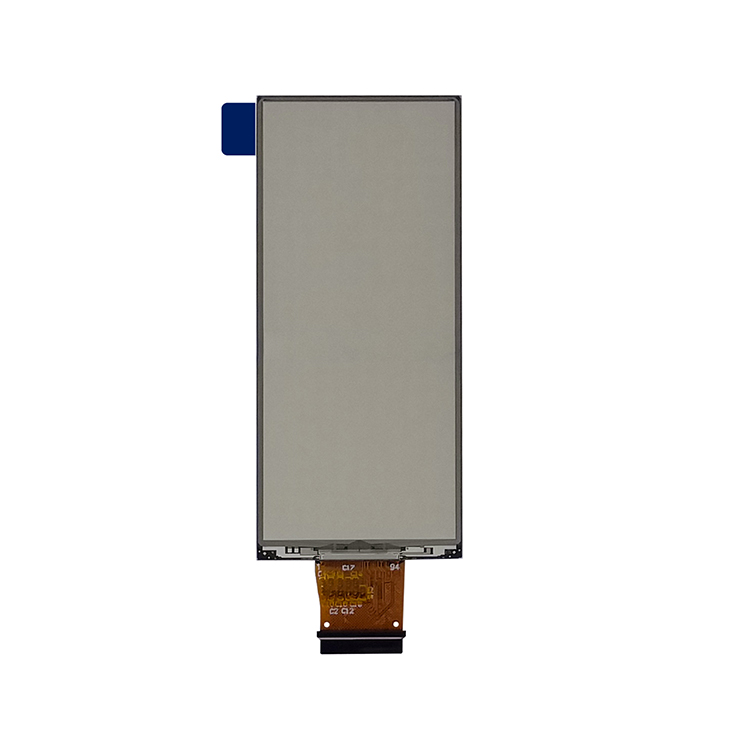

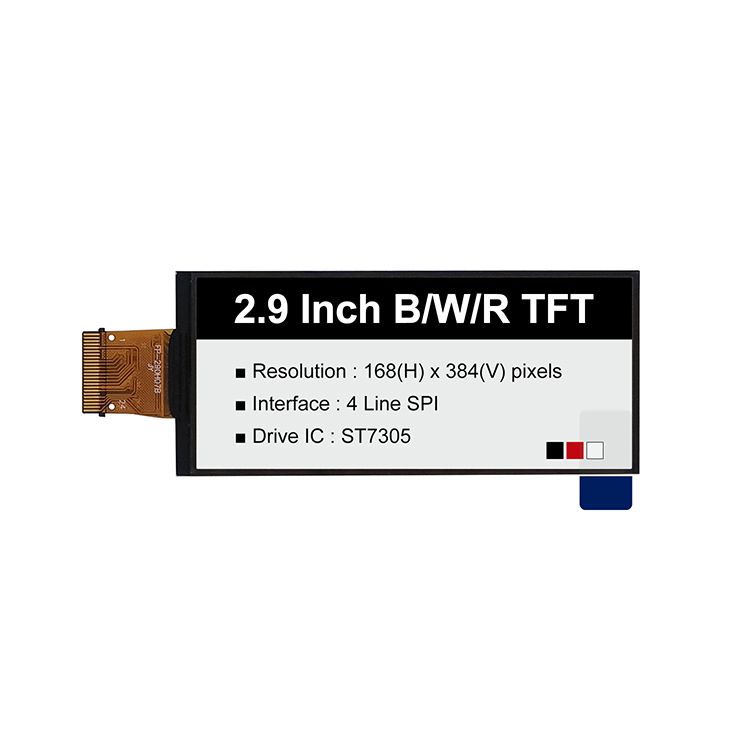

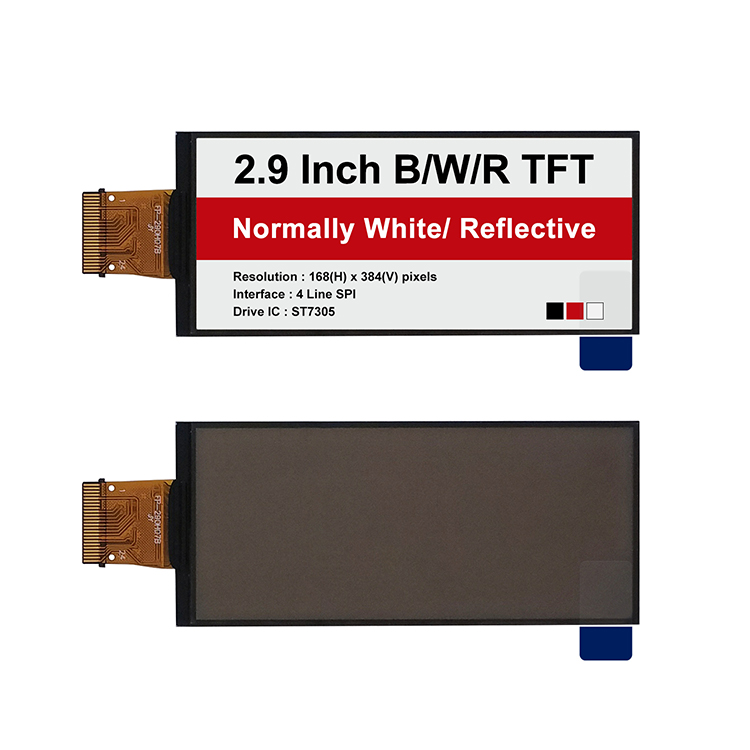

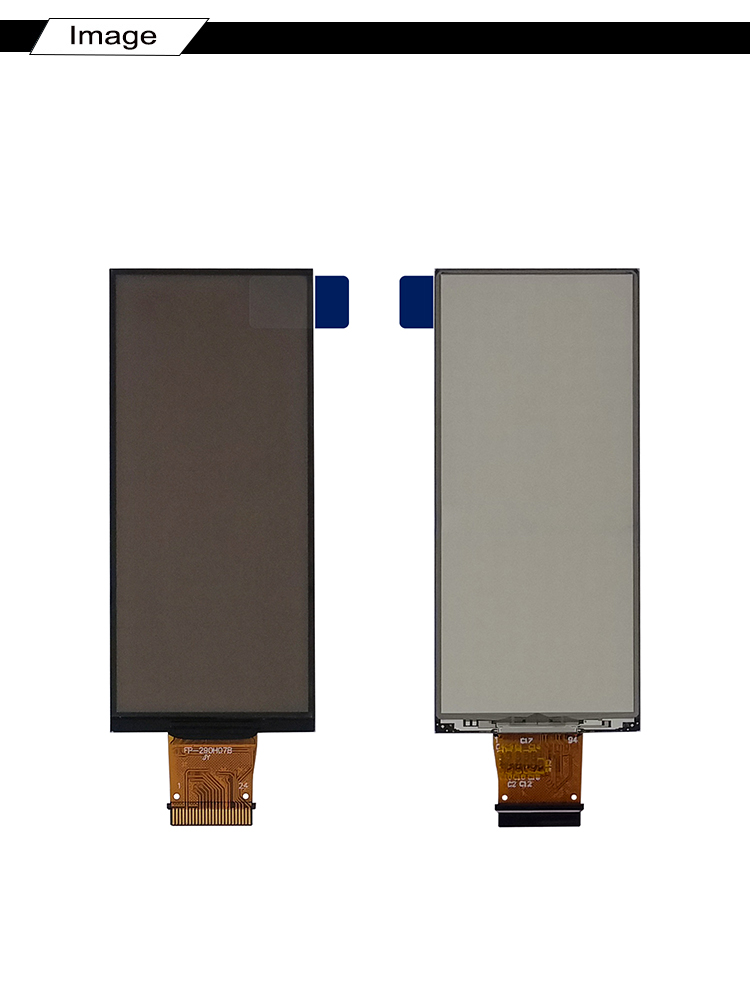

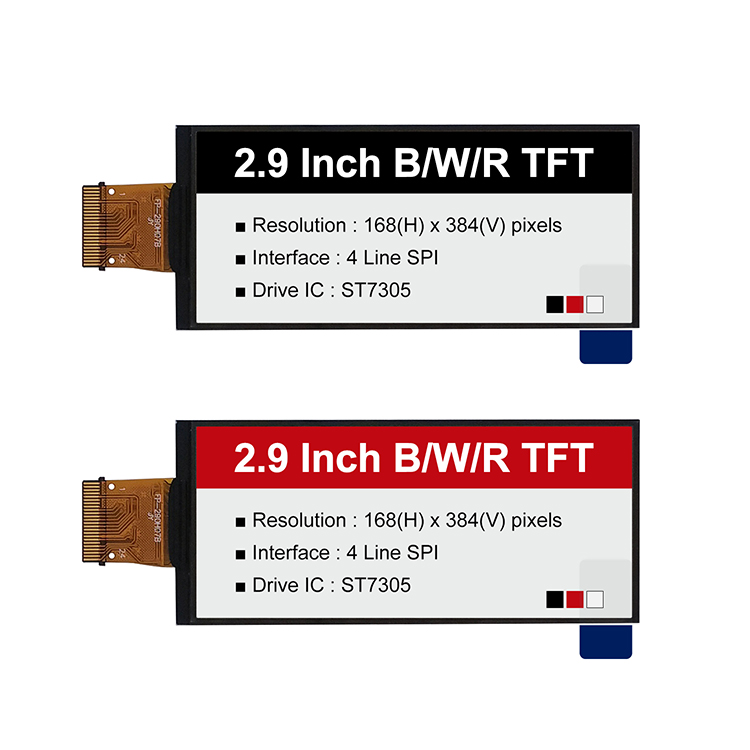

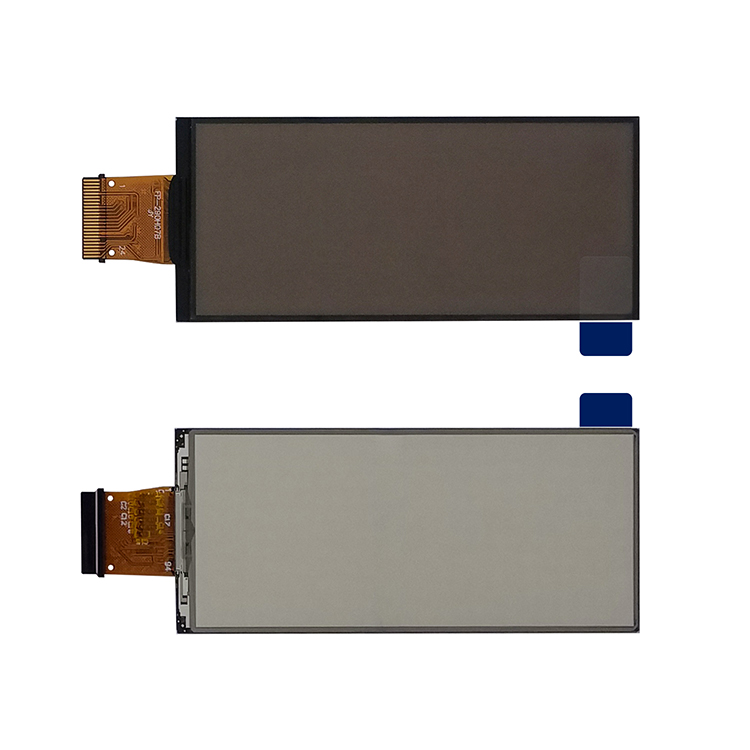

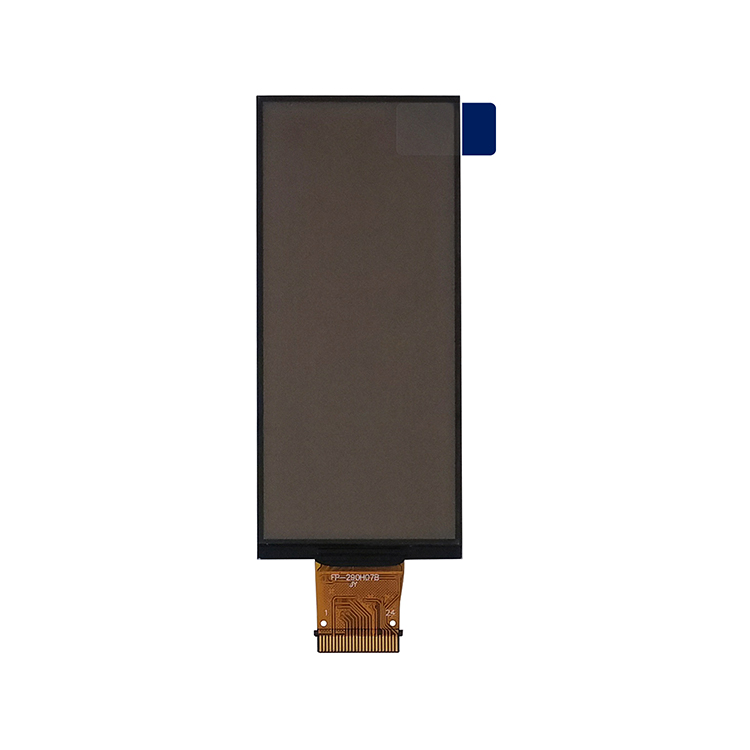

HICENDA HE290TR is a 168X384 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC.

General Specification

Display Type:	refelctive display/Sunlight Readable display
Display Mode:	Mono TFT/Normally White/ Reflective display
Model Number:	HE290TB
Diagonal Screen size:	2.9 inch
Interface:	4 Line SPI Interface
Number of Pixels:	168*384 pixels
Panel Size:	31.1(H) x 70.95(V) x0.8(D)(mm)
Driver IC:	ST7305
Active Area:	29.1(H) x 66.85(V)(mm)
Display Mode:	B/W/R TFT/Normally White/ Reflective
Dot pitch:	0.1732(H) x 0.17408(V)(mm)
Weight:	3.7±0.5(g)
Color:	Reflective display

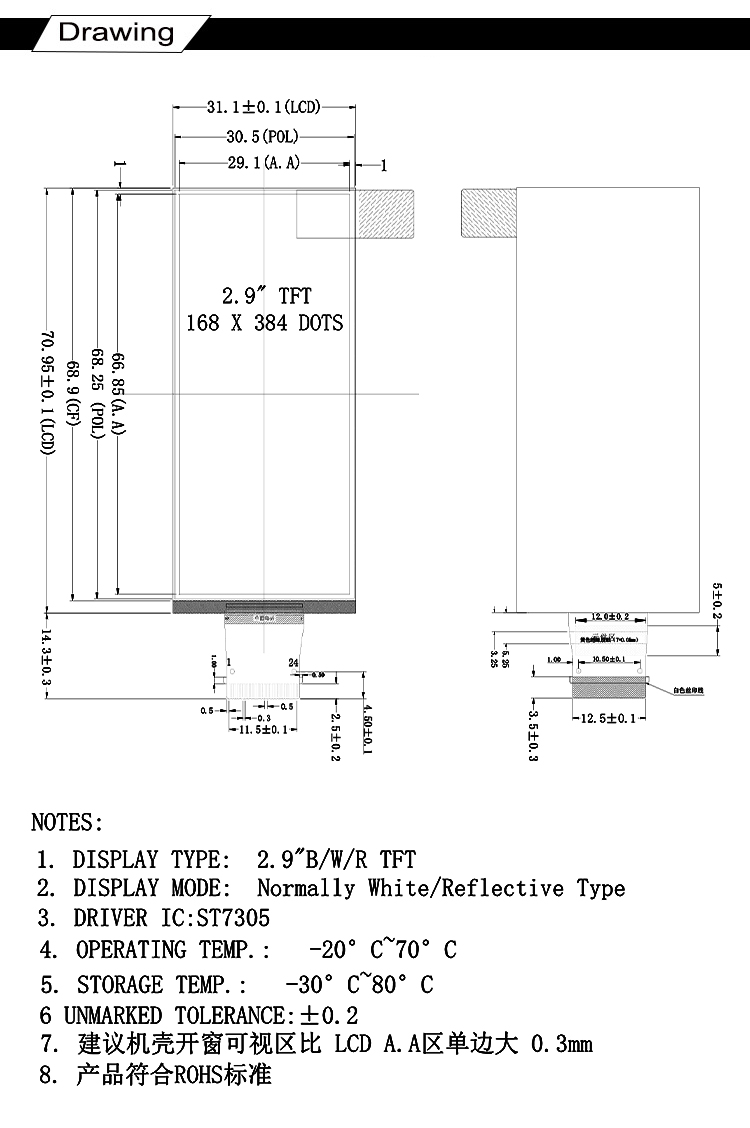

DRAWING

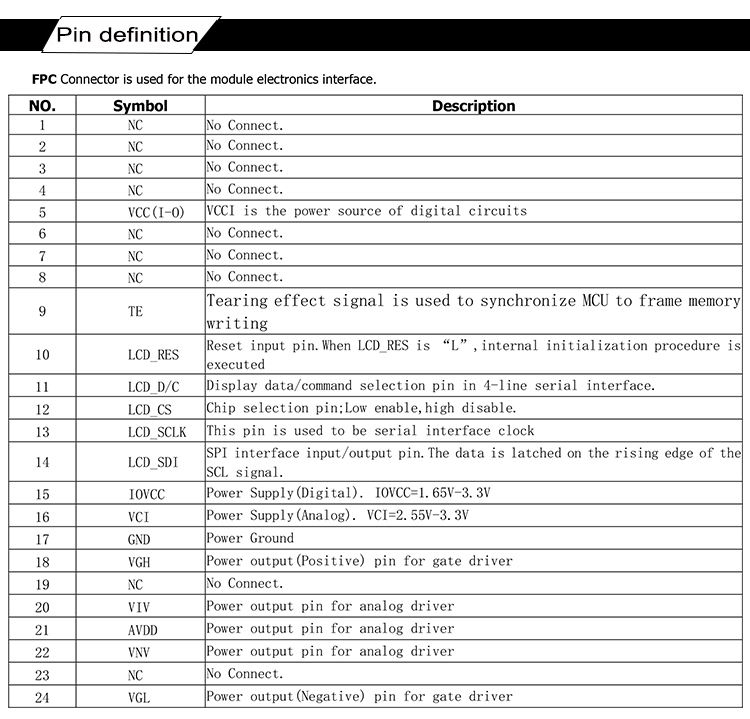

INTERFACE PIN FUNCTION
