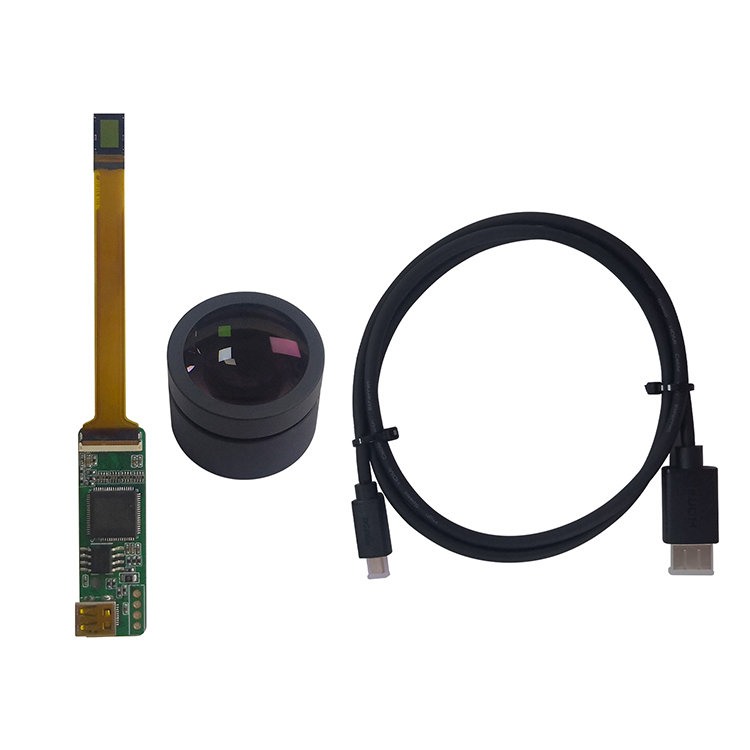

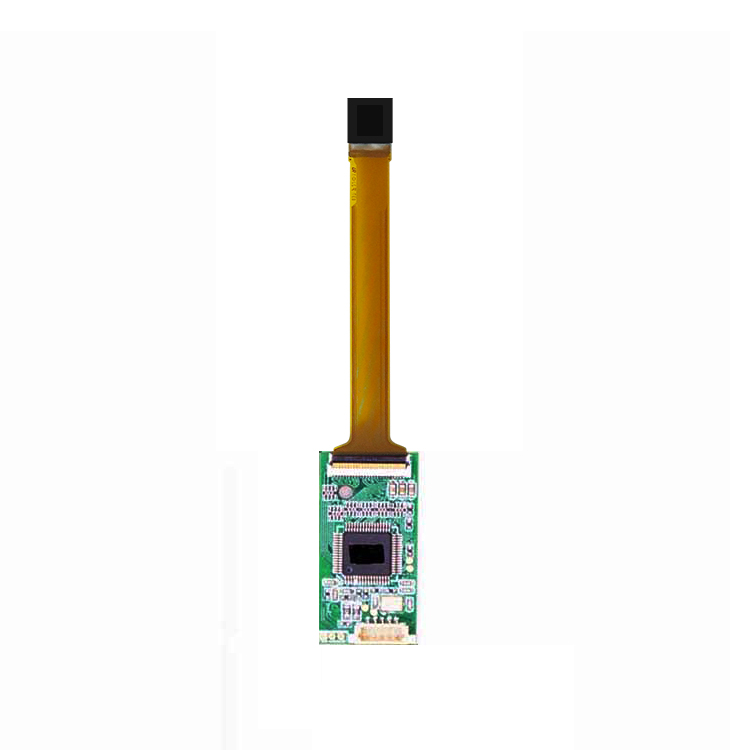

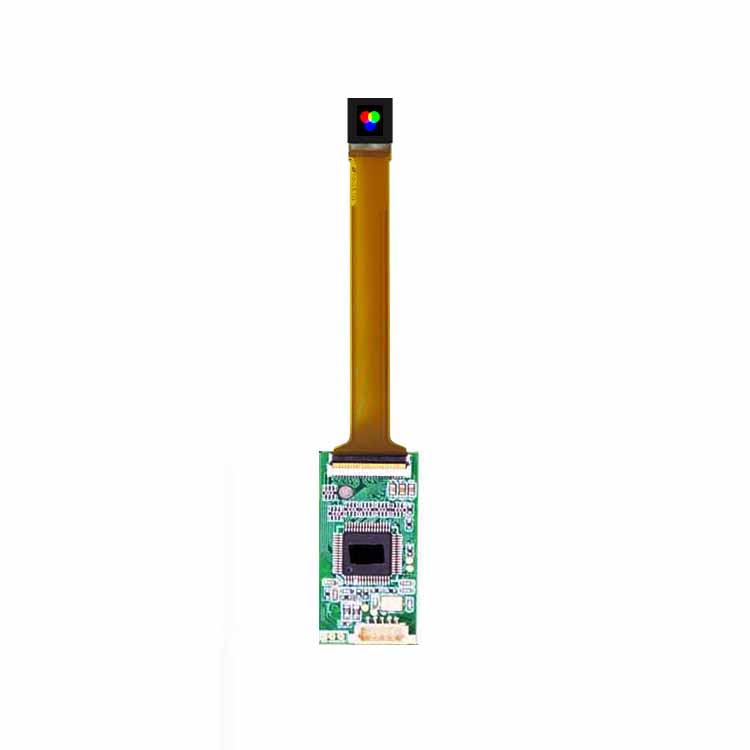

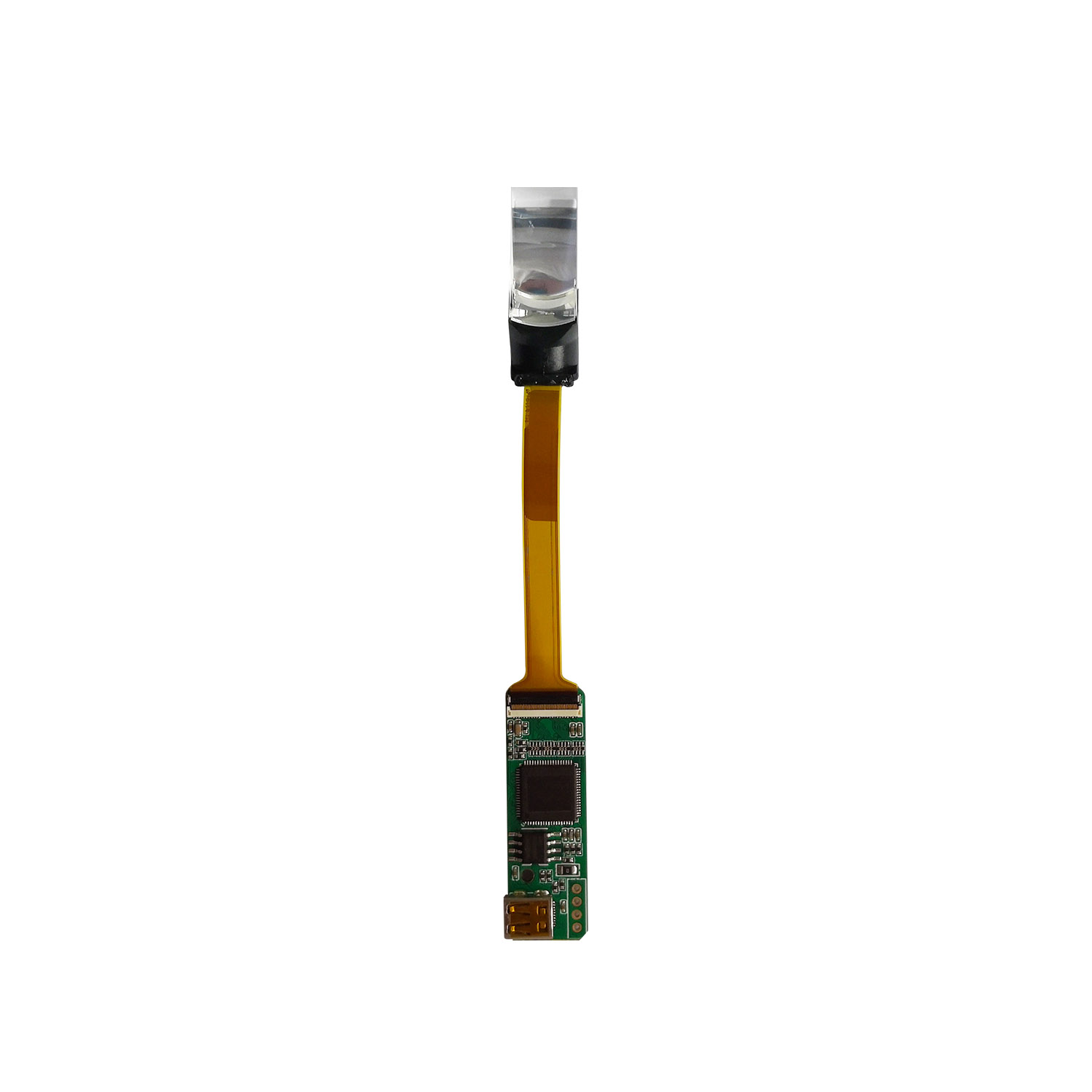

Microdisplay 0.23 inch OLED Display 640x400 800nits-3000nits
Product Description
The ECX336AF is a 0.6 cm (type 0.23) diagonal, 640 (RGB) × 400 dots active matrix color OLED panel module using single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.
(Applications: View finders, head mounted displays, very small monitors, etc.)
General Specification
| Display Type: | oled display |
| Display Mode: | Passive Matrix |
| Model Number: |
OL23BF |
| Diagonal Screen size: | 0.23 inch |
| Interface: |
parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input |
| Number of Pixels: |
640 (RGB) × 400 |
| Panel Size: |
15.6 x 13.6 x 0.2 (mm) |
| Active Area: |
8.143x 6.146 (mm) |
|
Weight: |
TBD |
|
Operating Temperature: |
-10~70° |
DRAWING
INTERFACE PIN FUNCTION
