Product Introduction
DESCRIPTION

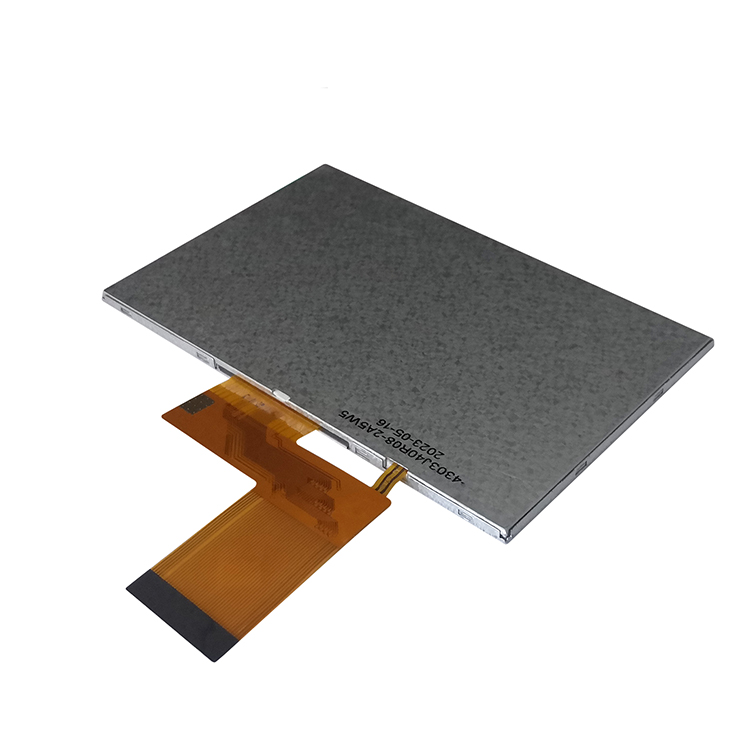

HICENDA HT-4300H40R08IPS-V05 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel,driver IC, FPC and a back light unit. The module display area contains 480X272pixels. Thisproduct accords with RoHS environmental criterion.
GENERAL SPECIFICATION
Weight:
TBD
Display Type:
TFT display
Display Mode:
Passive Matrix
Model Number:
Diagonal Screen size:
4.3 inch
Interface:
:
Number of Pixels:
Panel Size:
Driver IC:
Active Area:
Backlight:
Operating Temperature:
-30~80°

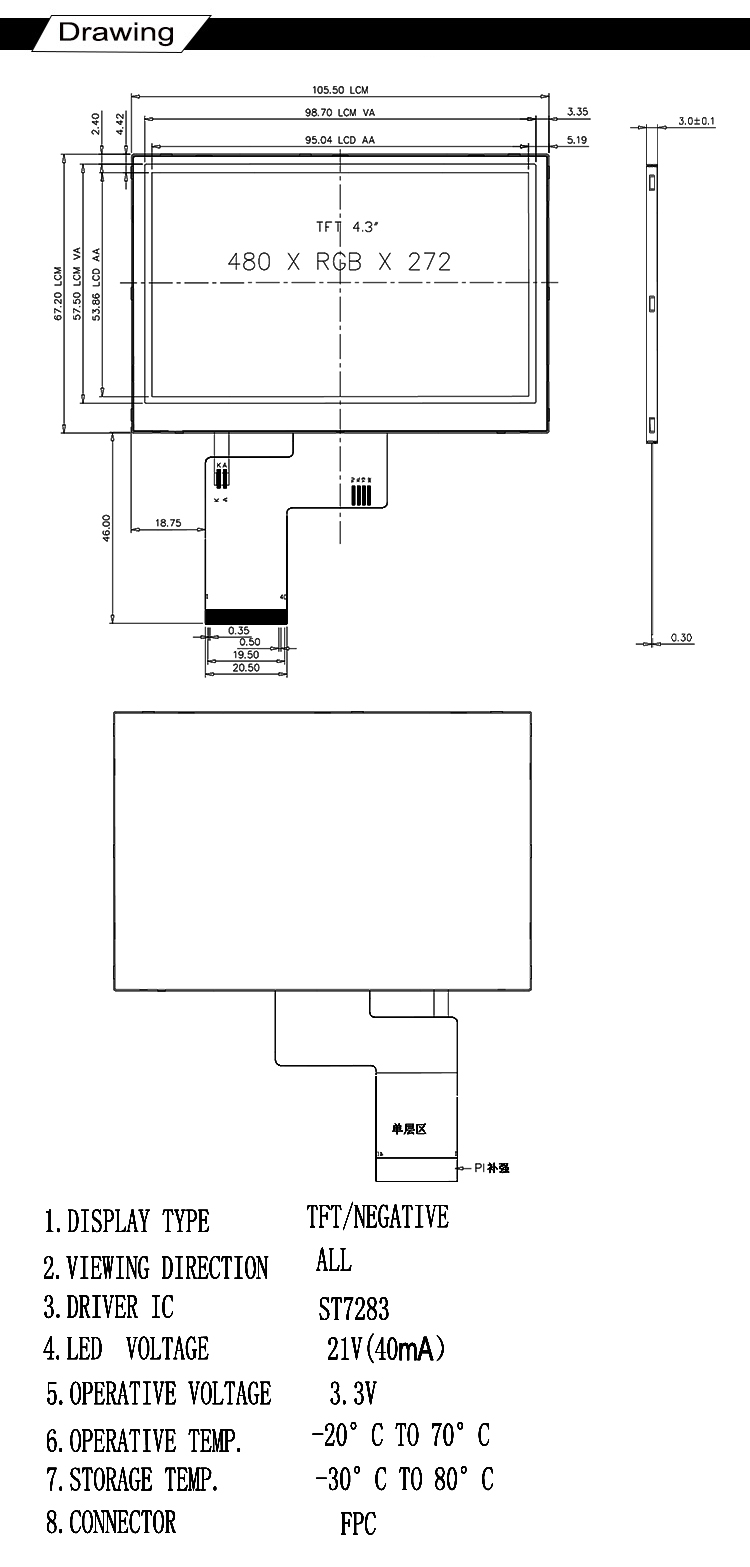

DRAWING

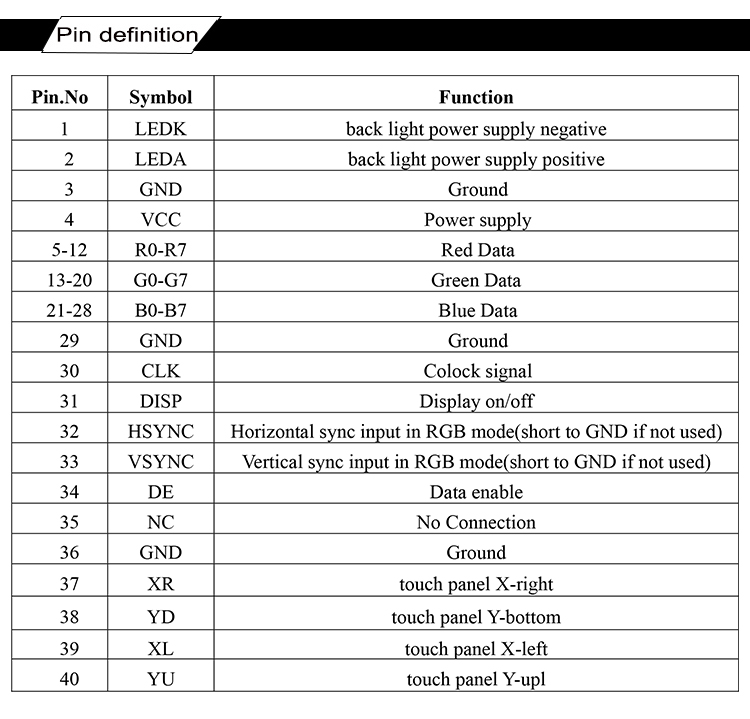

INTERFACE PIN FUNCTION
