Product Introduction

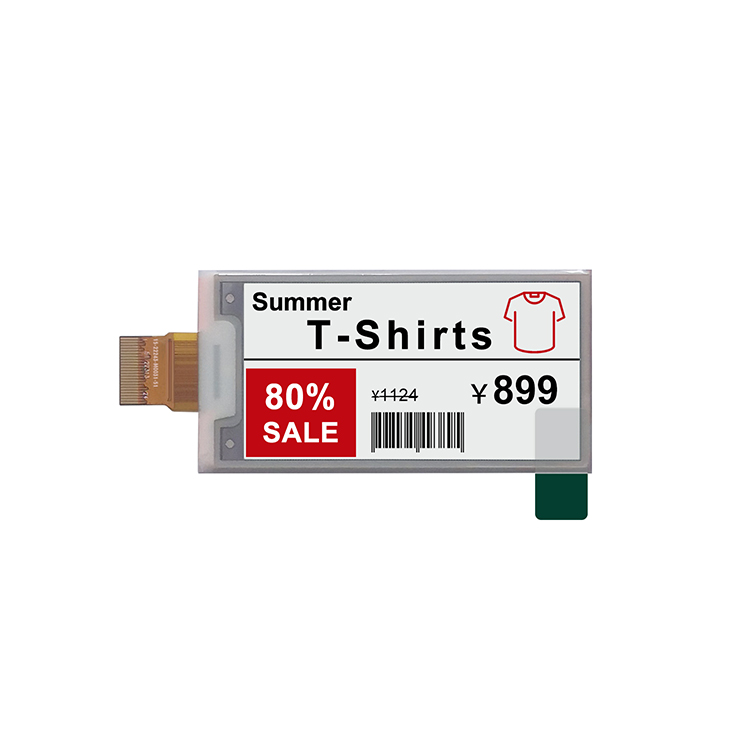

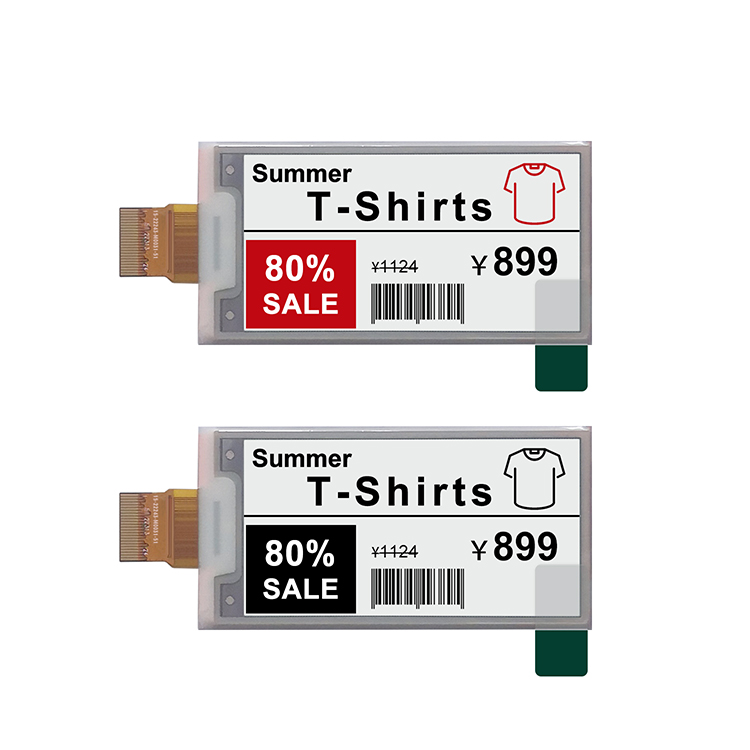

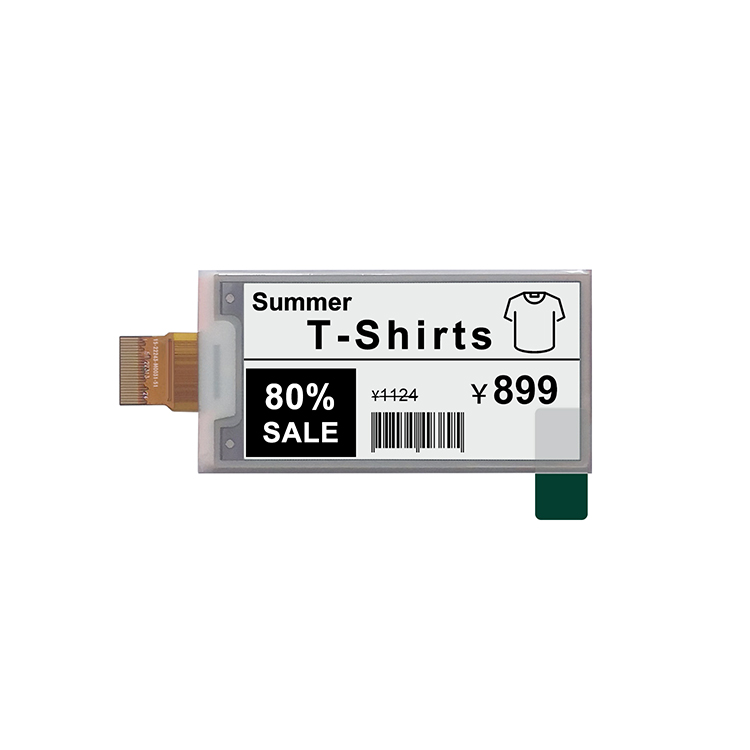

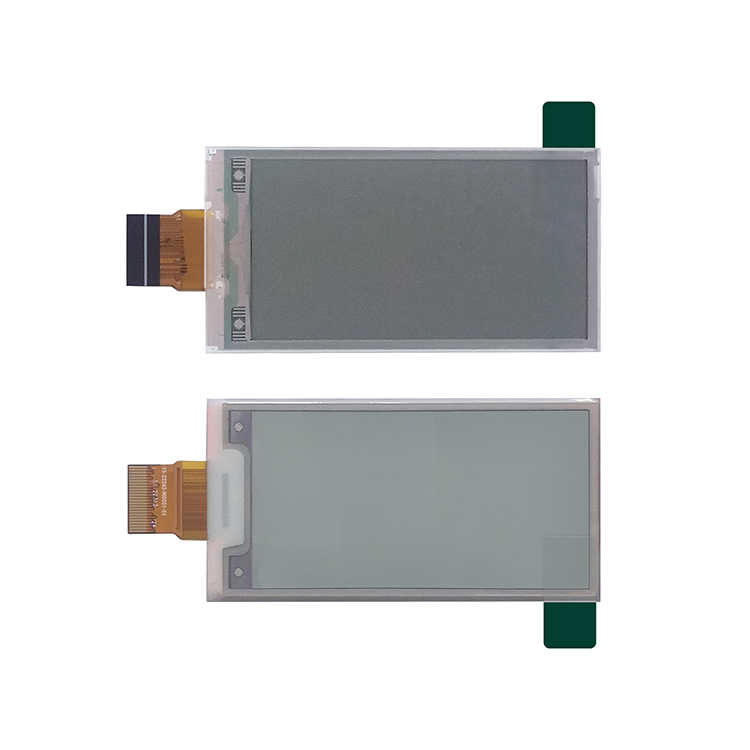

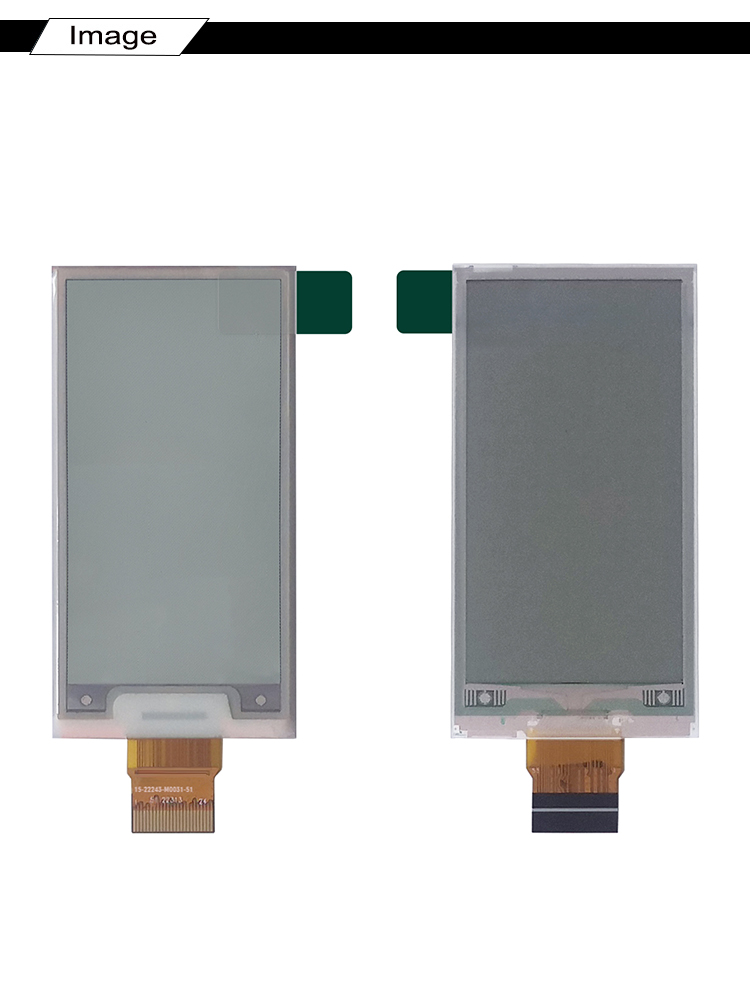

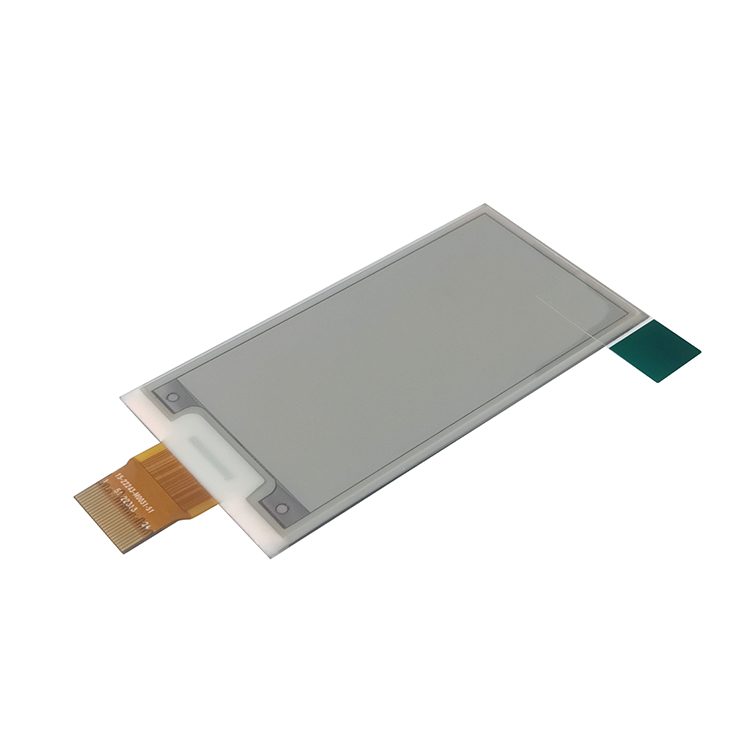

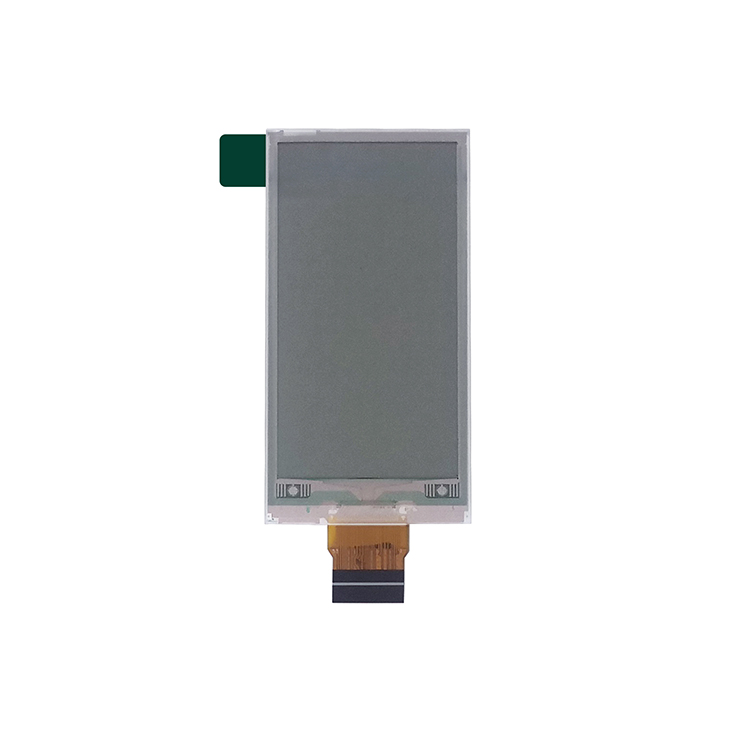

e-paper display 2.66 inch 296×152 eink screenn
DESCRIPTION
HICENDA HE003F isis an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design.The 2.66”active area contains 152×296pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.
General Specification
| Display Type: | Eink display |
| Display Mode: |
Active Matrix Electrophoretic Display
|
| Model Number: | HE003F |
| Diagonal Screen size: | 2.66 inch |
| Interface: | wire SPI i |
| Number of Pixels: |
152(H)×296(V)
|
| Panel Size: |
36.3(H)×71.82(V)×0.92(D)(mm)
|
| Driver IC: |
SSD1680ZA |
| Active Area: |
30.70(H)×60.09(V)(mm)
|
| : |
EINK
|
| Pixel Pitch: |
0.202×0.203(mm)
|
|
Weight: |
4.88±0.5(g)
|
|
Color:
|
Eink
|
DRAWING

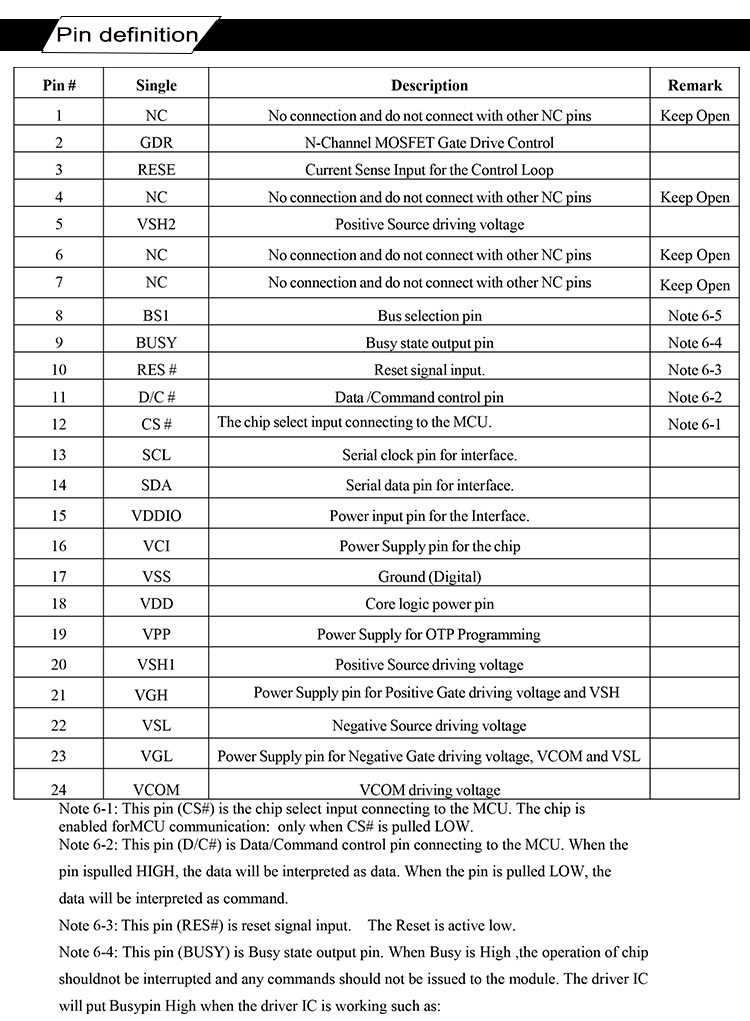

INTERFACE PIN FUNCTION
