Product Introduction

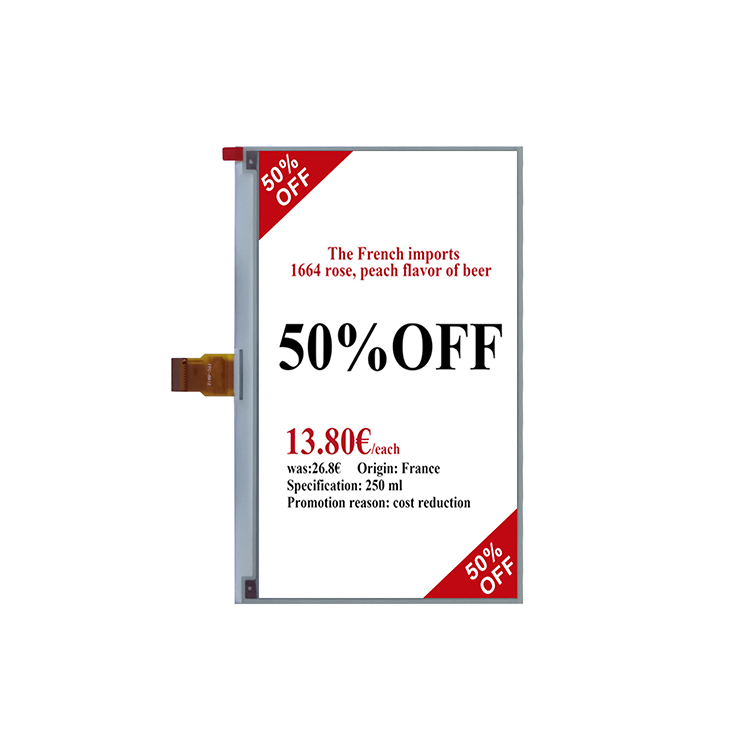

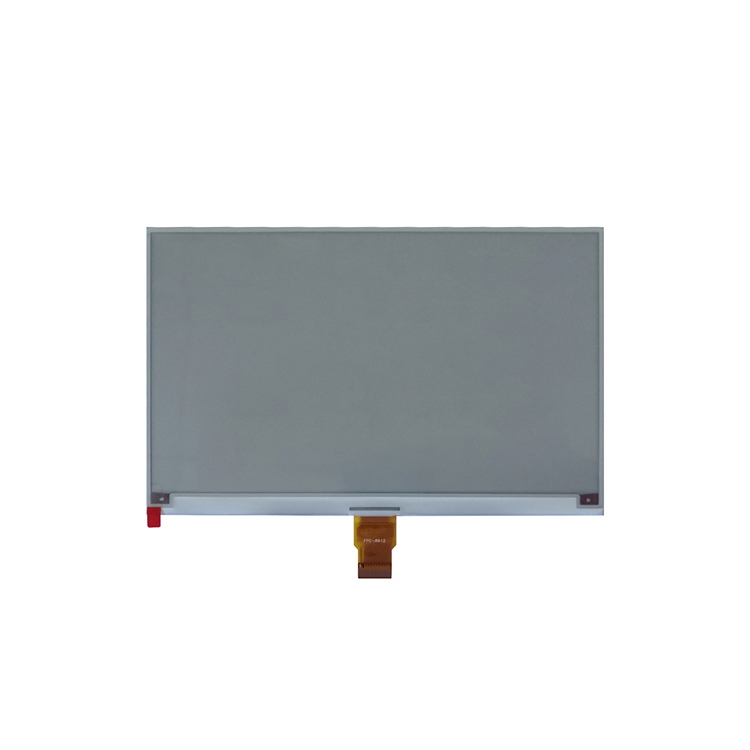

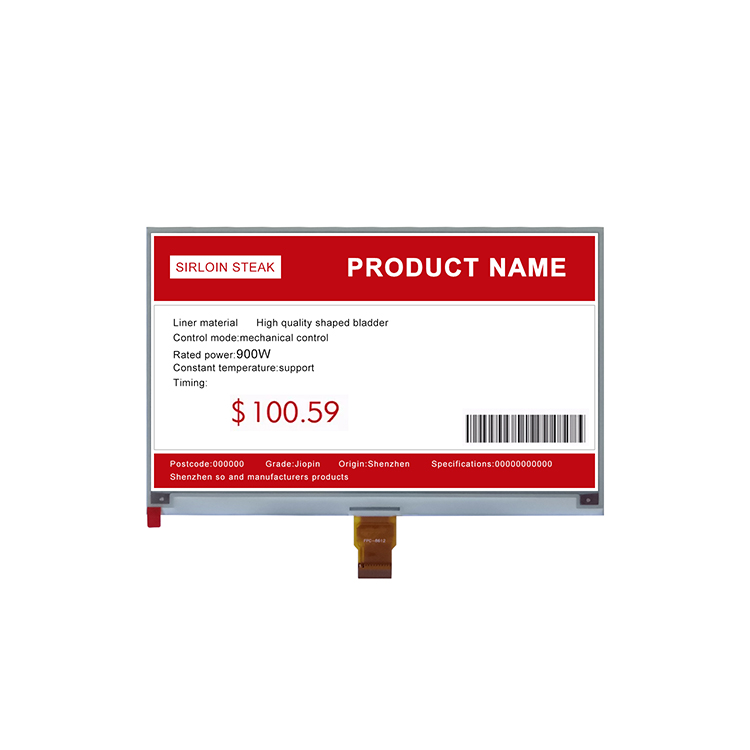

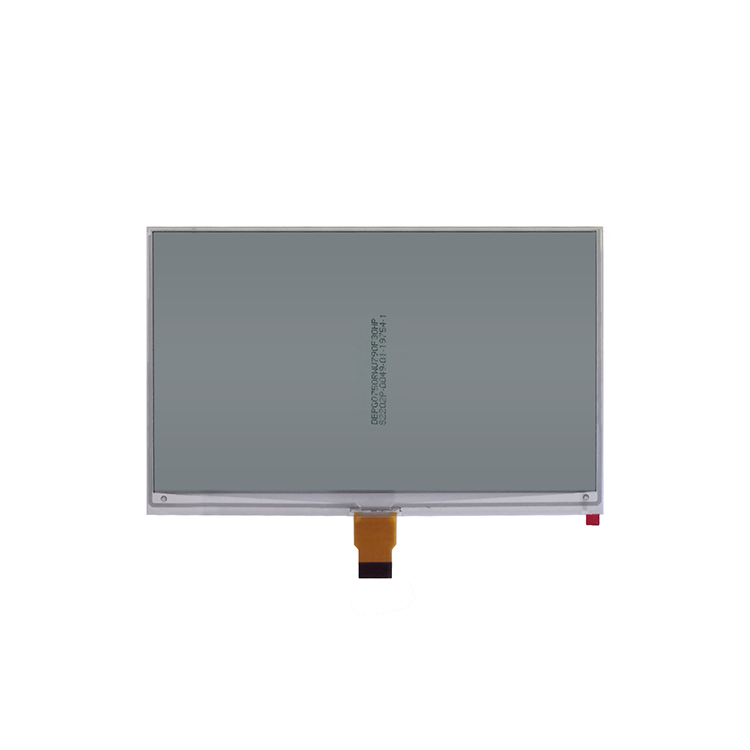

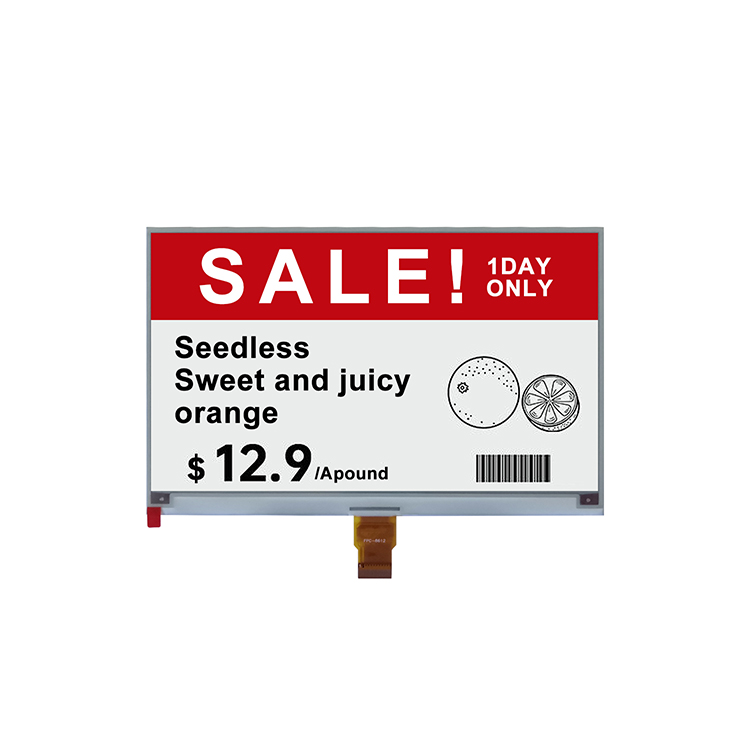

eink display 7.5 inch 480x800 epd screen panel
DESCRIPTION
HICENDA HXDC075R1 is an Active Matrix Electrophoreses Display(AM EPD), with interface and a reference system design. The 7.5” active area contains 800*480 pixels, and has 1-bit white/black and l-bit red full display capabilities.. The module is a TFT-array driving electrophoretic display, with integrated circuits including gate buffer, source buffer, MCU interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL)System.
General Specification
| Display Type: | E-INK display |
| Display Mode: | AM EPD |
| Model Number: | HXDC075R1 |
| Diagonal Screen size: | 7.5 inch |
| Interface: |
MCU
|
| Backlight: |
(white)
|
| Number of Pixels: |
800x480 |
| Panel Size: |
170.2(H)×111.2 (V) ×1.27(D)(mm)
|
| Driver IC: |
SSD1680Z8 |
| Active Area: |
163.2×97.92(mm)
|
| : |
EPD Display
|
| : |
0.204×0.204 MM
|
|
Weight: |
43 |
|
Operating Temperature: |
-20~70° |

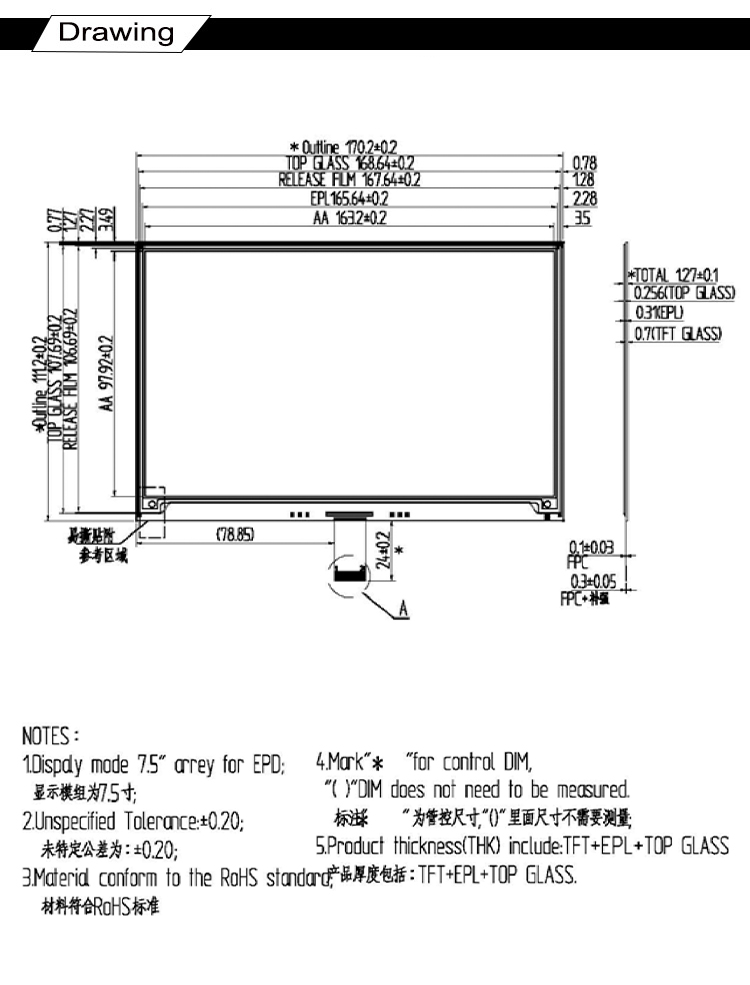

DRAWING

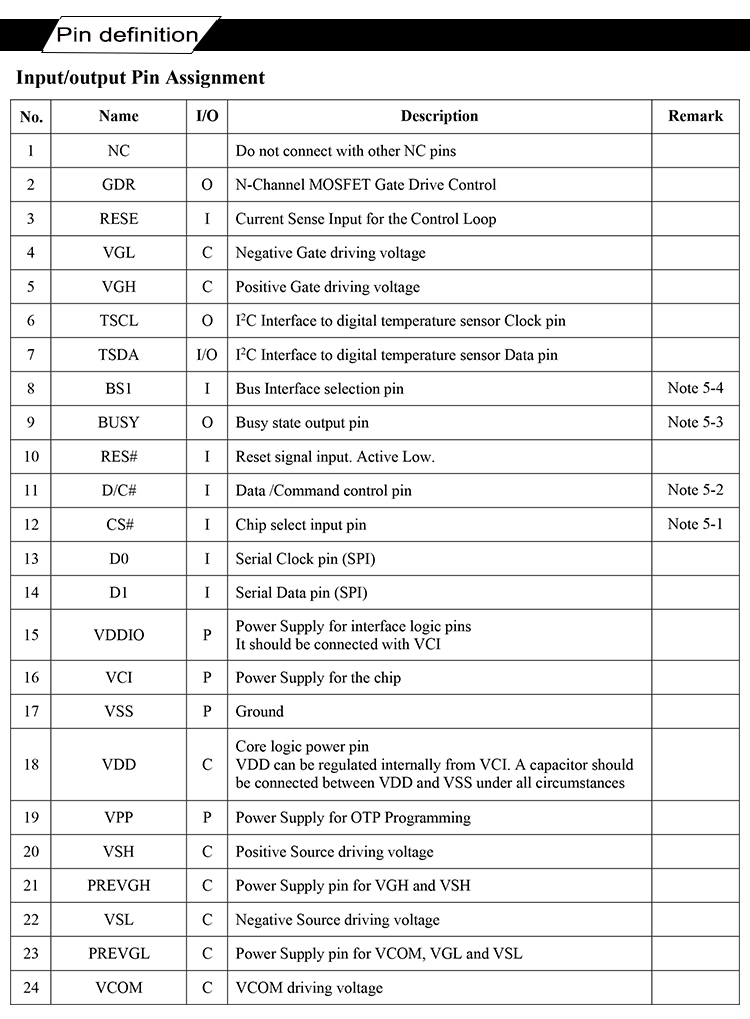

INTERFACE PIN FUNCTION
