BOE 0.71 inch micro OLED display FHD 1920x1080 screen for AR/VR

Product Introduction

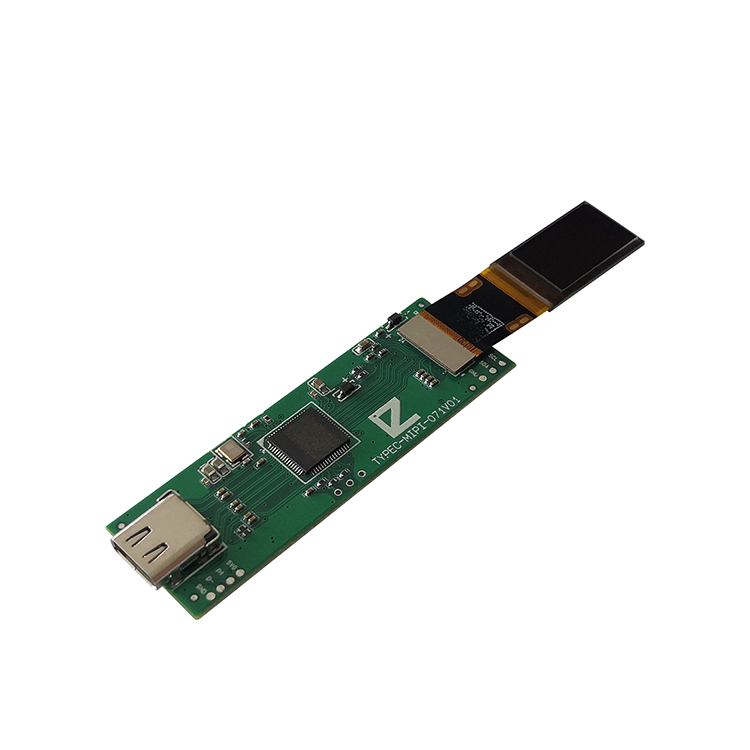

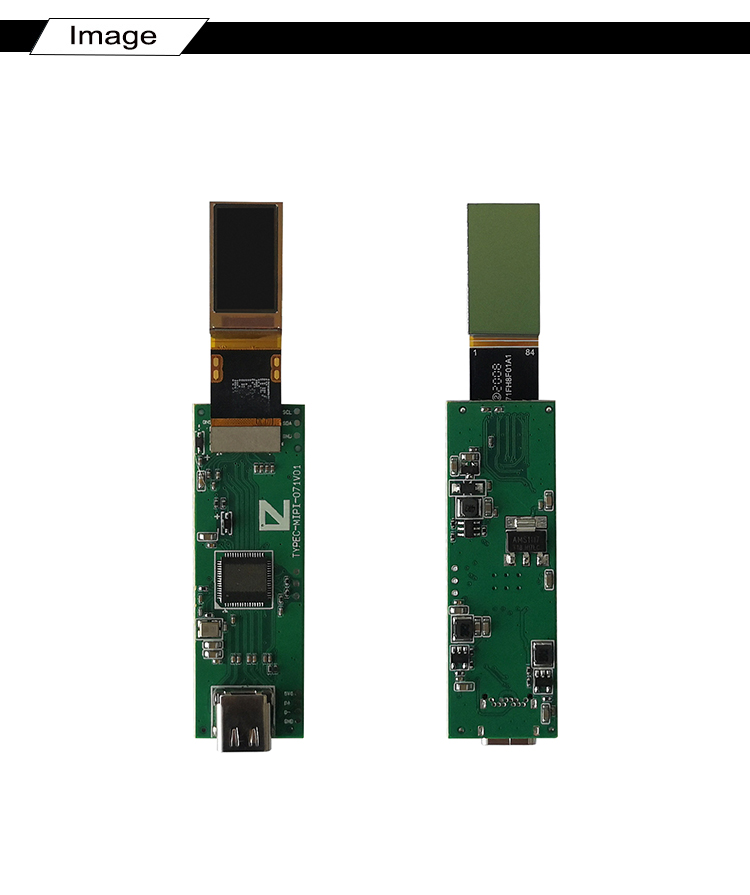

BOE 0.71 inch micro OLED display FHD 1920x1080 screen for AR/VR

Product Description

The B071FH8P01A0/F01A0 is a 0.71 inch diagonal, FHD resolution(1920 x1080), active matrix color OLED (Organic Light Emitting Display)panel module based on single crystal silicon backplane . The pixel circuits and drivingIC are integrated on the silicon backplane to get the compact size and very low power consumption.

(Potential applications: Virtual Reality application（AR/VR）, Head mounted displays, Near-Eye Displays etc.)

GENERAL SPECIFICATION

Display Type:	oled display
Display Mode:	Passive Matrix
Model Number:	B071FH8P01A0/F01A0
Diagonal Screen size:	0.71 Inch

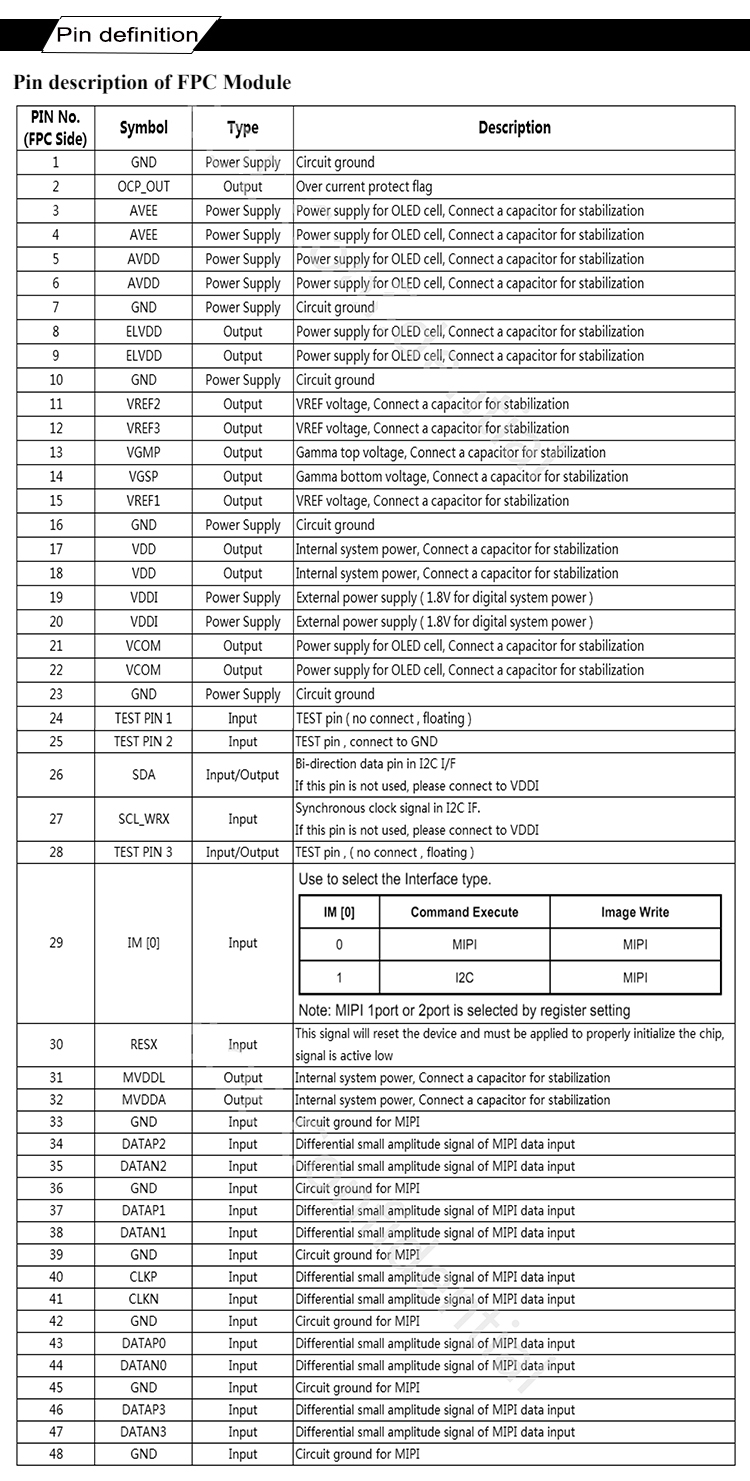

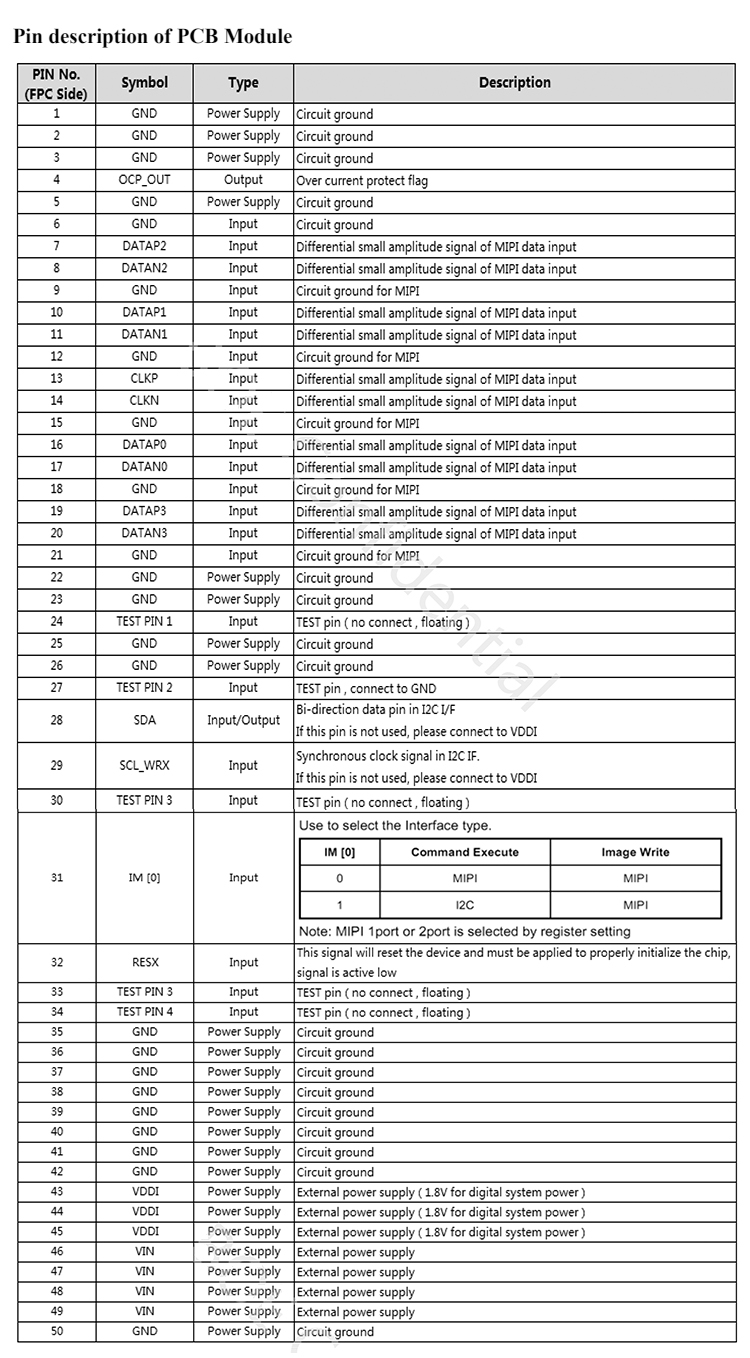

Interface:	Support MIPI only or MIPI(data)+I2 C(CMD)
Number of Pixels:	1920x1080

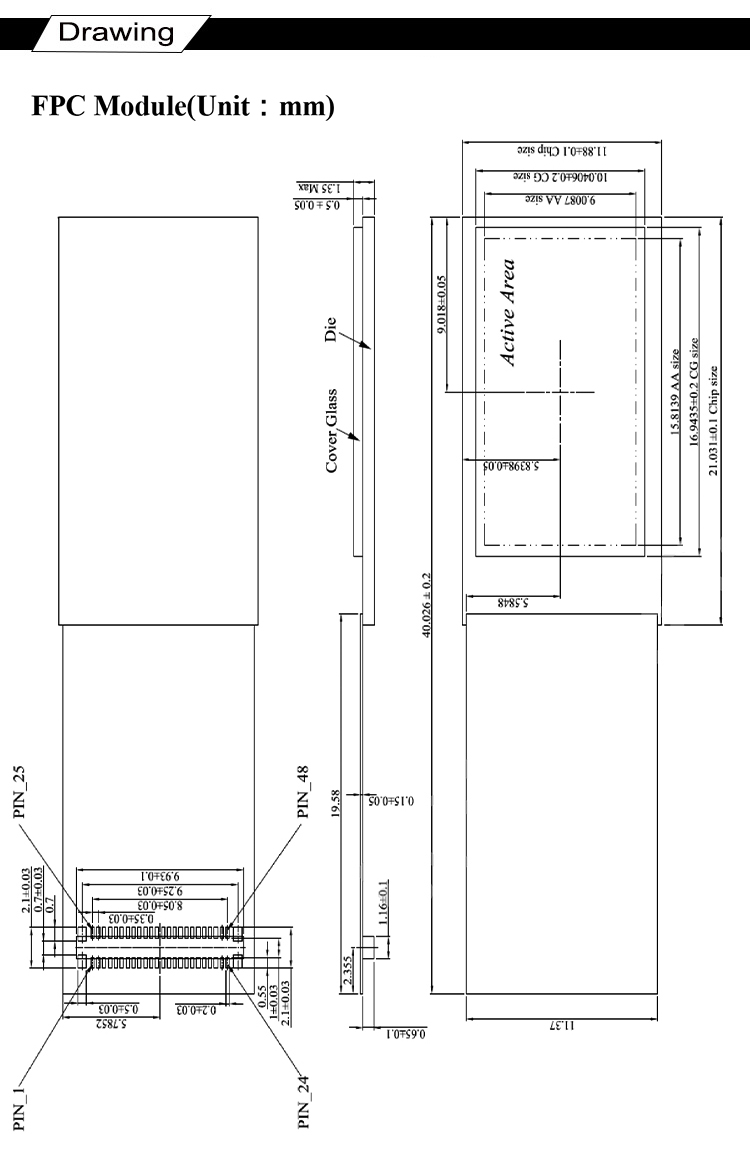

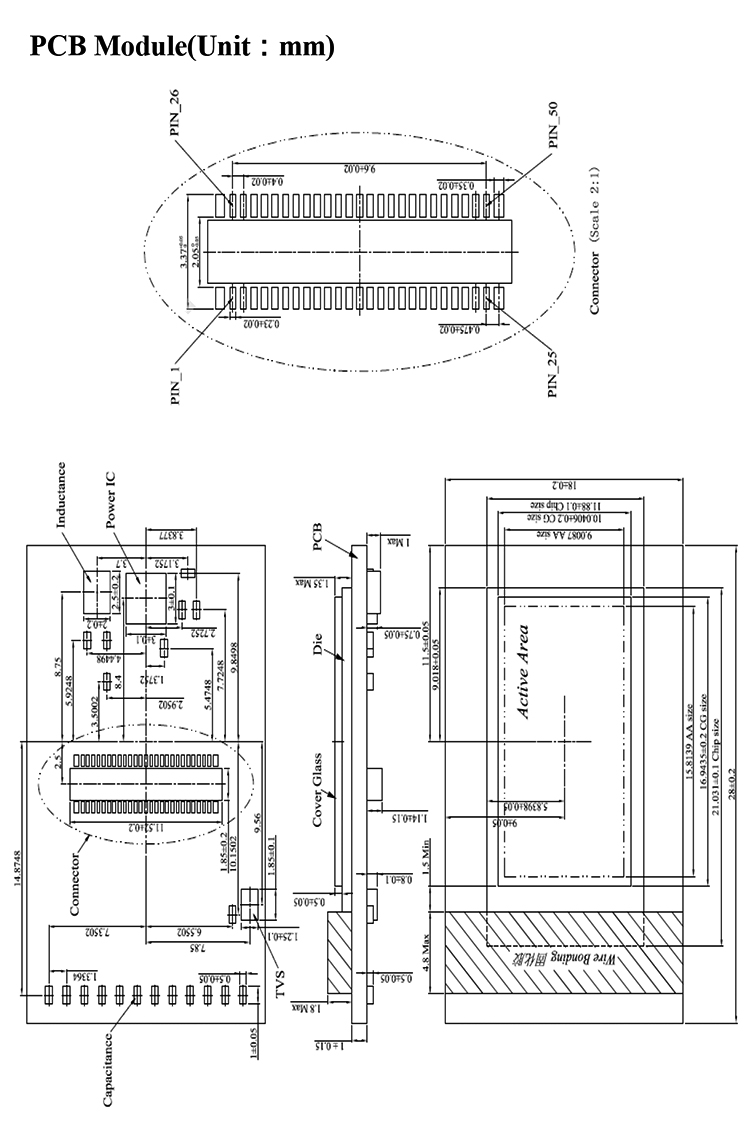

Panel Size:	28X18 x 0.2 (mm)
Active Area:	15.8x 9.0087 (mm)
Weight:	TBD
Operating Temperature:	-10~70°
