Product Name

0.71 inch micro OLED display FHD 1920x1080 dots AMOLED module RGB interface selectable 81 pins FPC with HDMI Board and Eyepiece for AR/VR

Product Properties

Display Size:0.71 inch Resolution:1920x1080 dots Interface: RGB Pin:81 pins
Email Us To Inquiry
FacebookTwitterLinkedInAddThis

Product Introduction

0.5 inch micro OLED display FHD 1280x960 dots AMOLED module MIPI I2C interface selectable 61 pins FPC with Eyepiece for AR/VR


Product Description

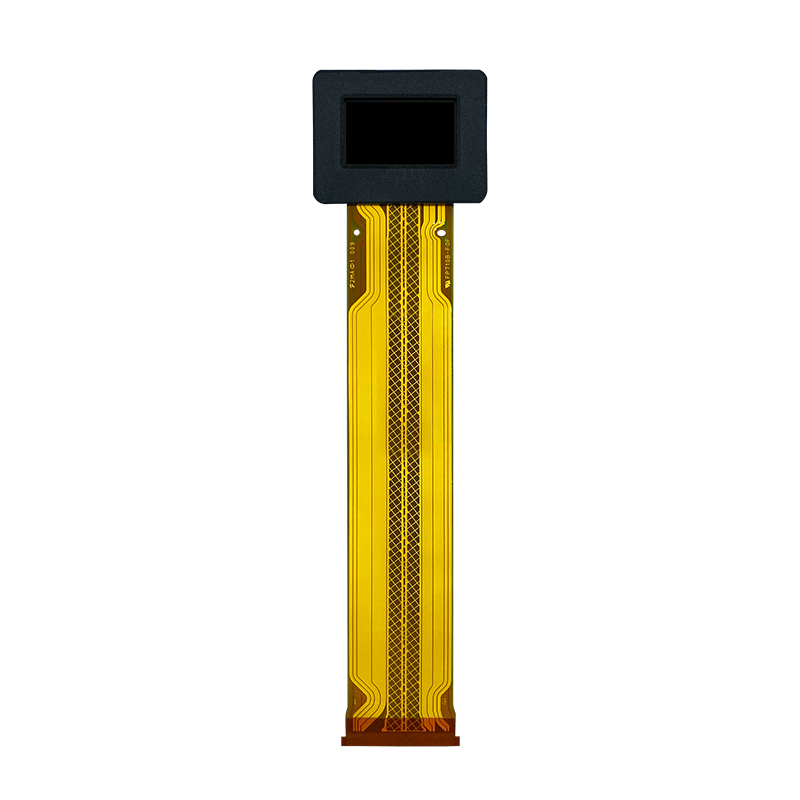

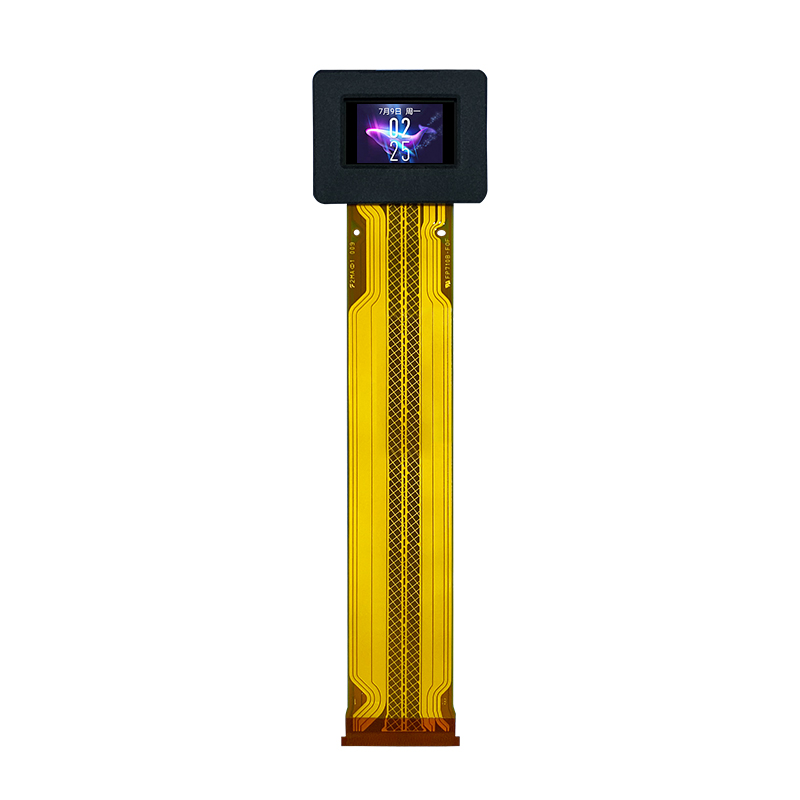

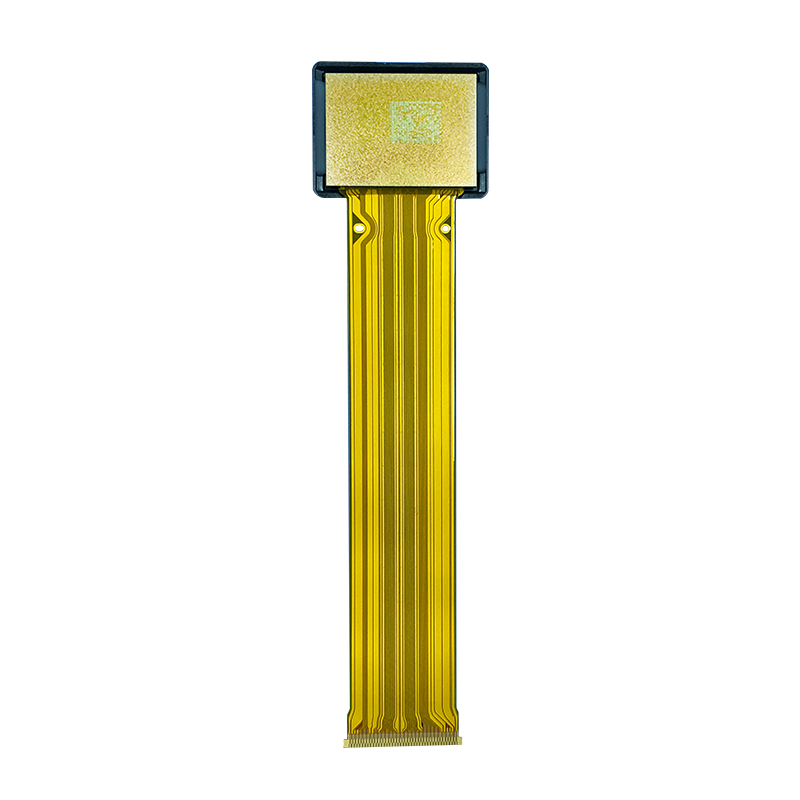

It is a 0.71 inch(1.80 cm) diagonal, FHD resolution(1920 x1080), active matrix color OLED(Organic Light Emitting Display)panel module based on single crystal silicon transistors . The module integrates panel driver and logic driver,and achieves smaller size,light in weight and high resolution.

(Protential Application:Head mounted displays,View finders,Small monitors,Etc..)



Display Type:  oled display
Display Mode:  Passive Matrix
Model Number:

HG-ECX335AF

Diagonal Screen size: 0.71 inch
Interface:

 RGB

Number of Pixels:

1920(RGB) × 1080

Panel Size:

10.14(H) × 7.644(V)(mm)

Active Area:

17.8(H) × 15.2(V) (mm)

Weight:

TBD

Operating Temperature:

-10~70°
