4.2 inch E-ink Display Module 400x300 E-paper

Product Introduction

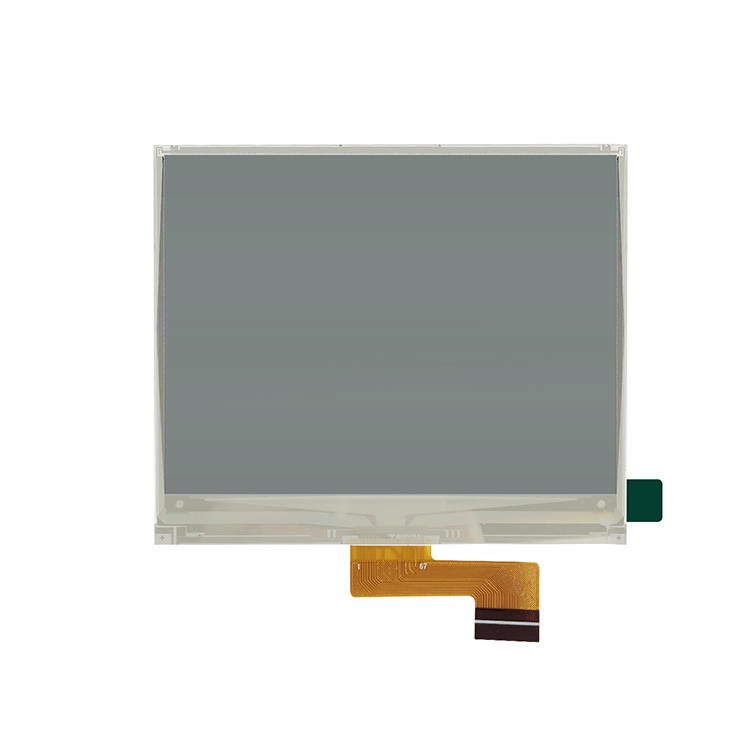

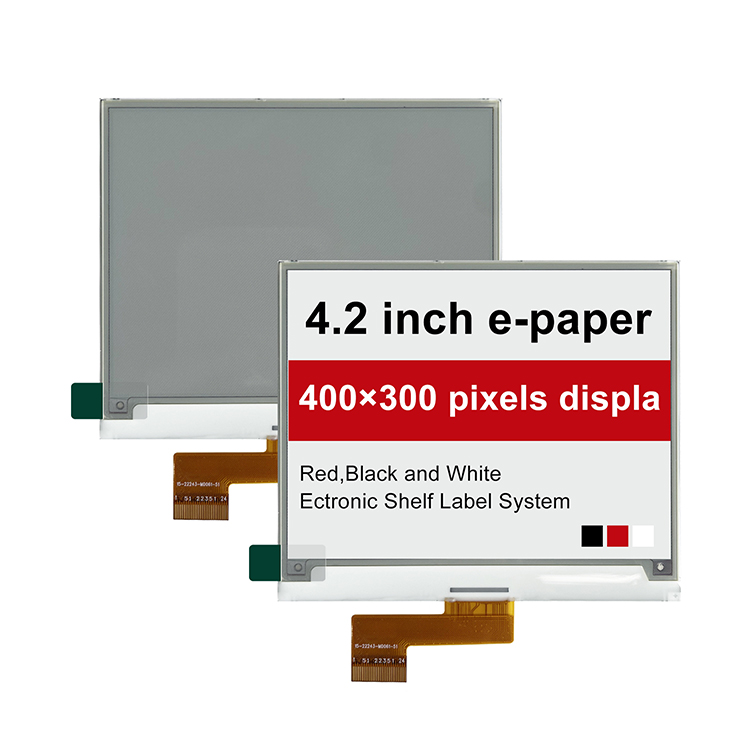

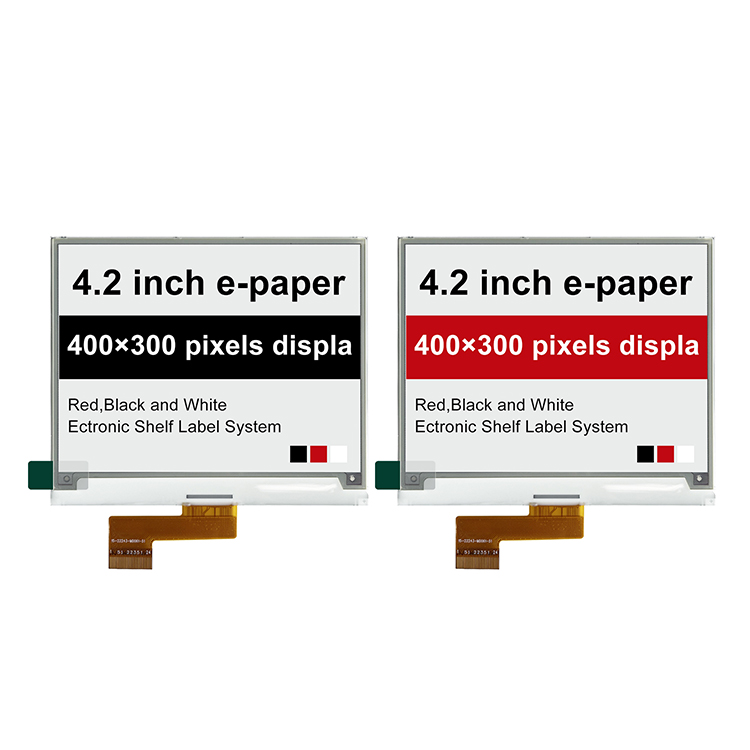

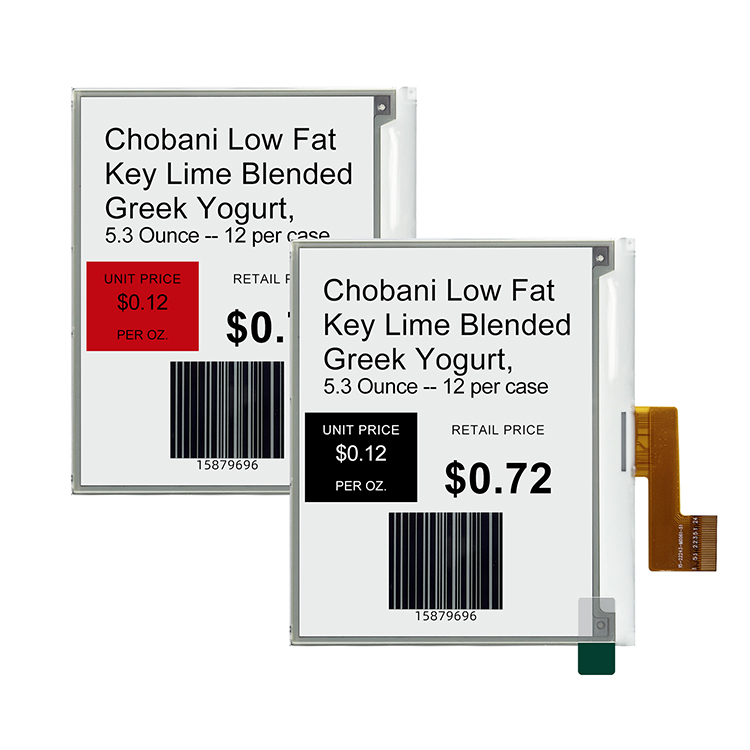

4.2 inch E-ink Display Module 400x300 E-paper

DESCRIPTION

HICENDA HE006F is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design.The 4.2”active area contains 400×300 pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.

General Specification

Display Type:	Eink display
Display Mode:	Active Matrix Electrophoretic Display
Model Number:	HE13502- 008F
Diagonal Screen size:	3.5 inch
Interface:	4-wire SPI or 3- wire SPI i
Number of Pixels:	184(H)×384(V)
Panel Size:	36.7(H)×79.0 (V) ×0.92(D)(mm)
Driver IC:	SSD1685
Active Area:	45.03(H)×91.75 (V) ×0.92(D)(mm)
Display Mode:	EINK
Pixel Pitch:	0.207×0.207(mm)
Weight:	7.54±0.5(g)
Color:	Eink
