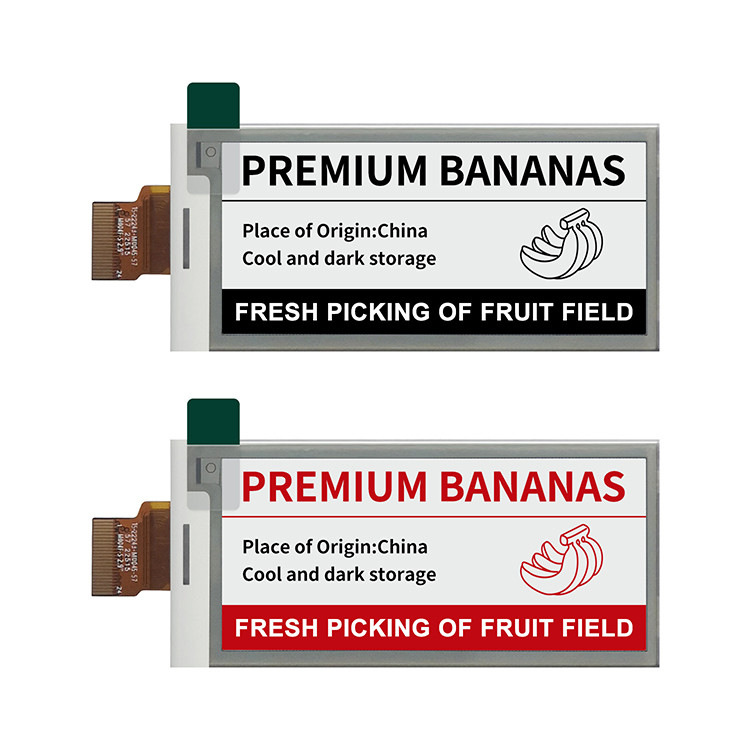

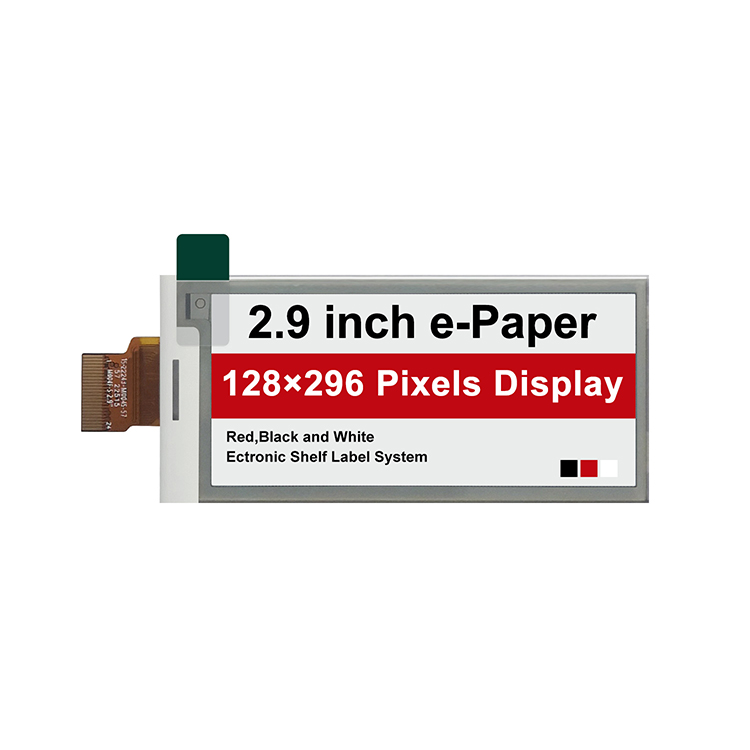

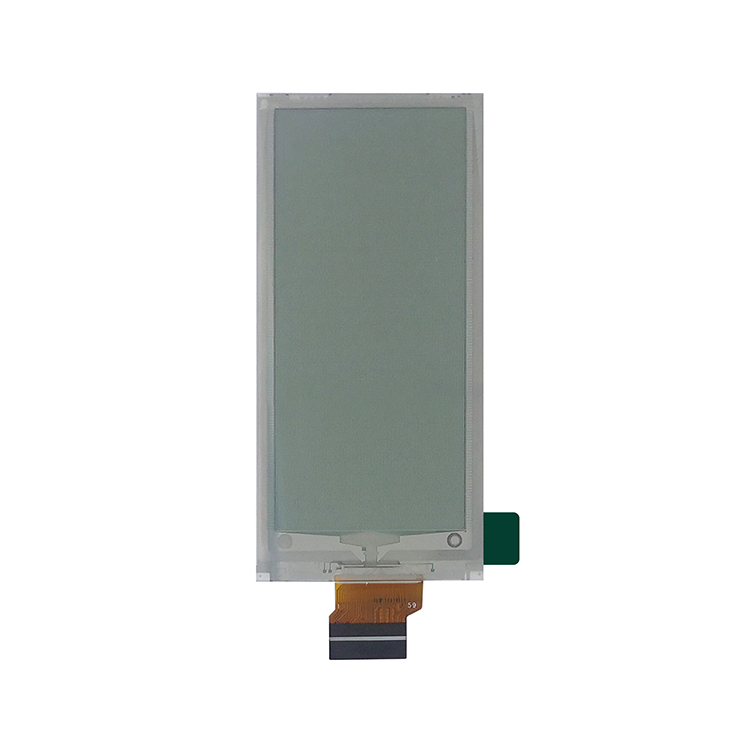

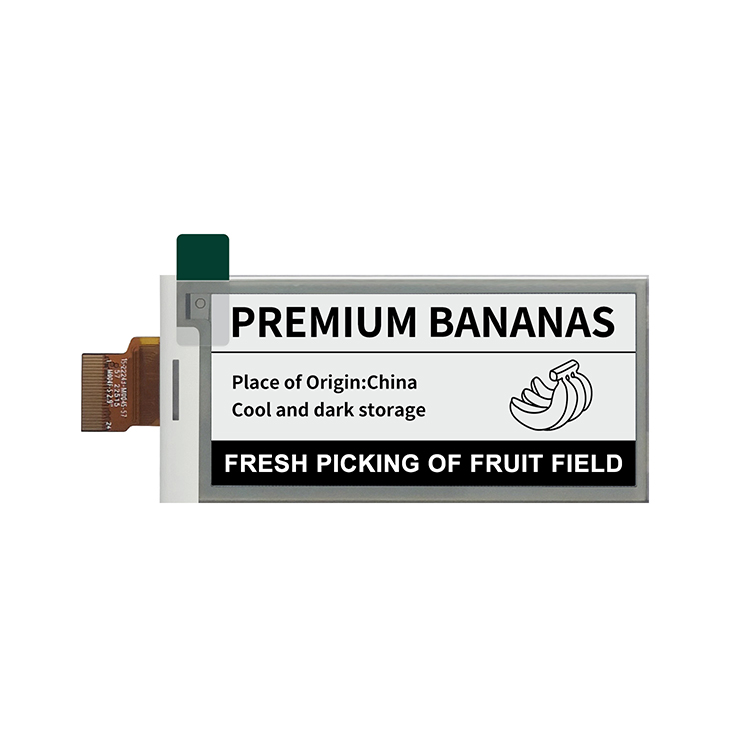

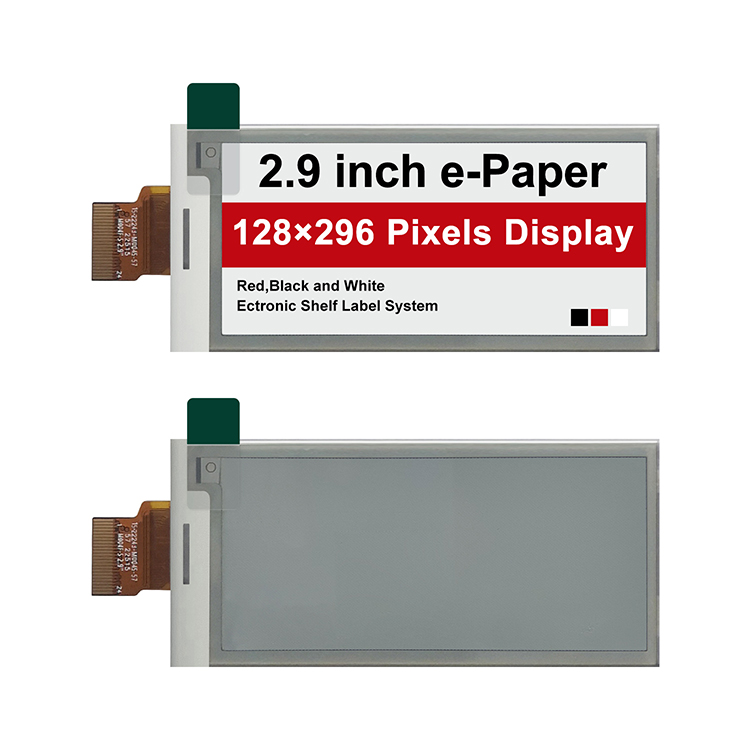

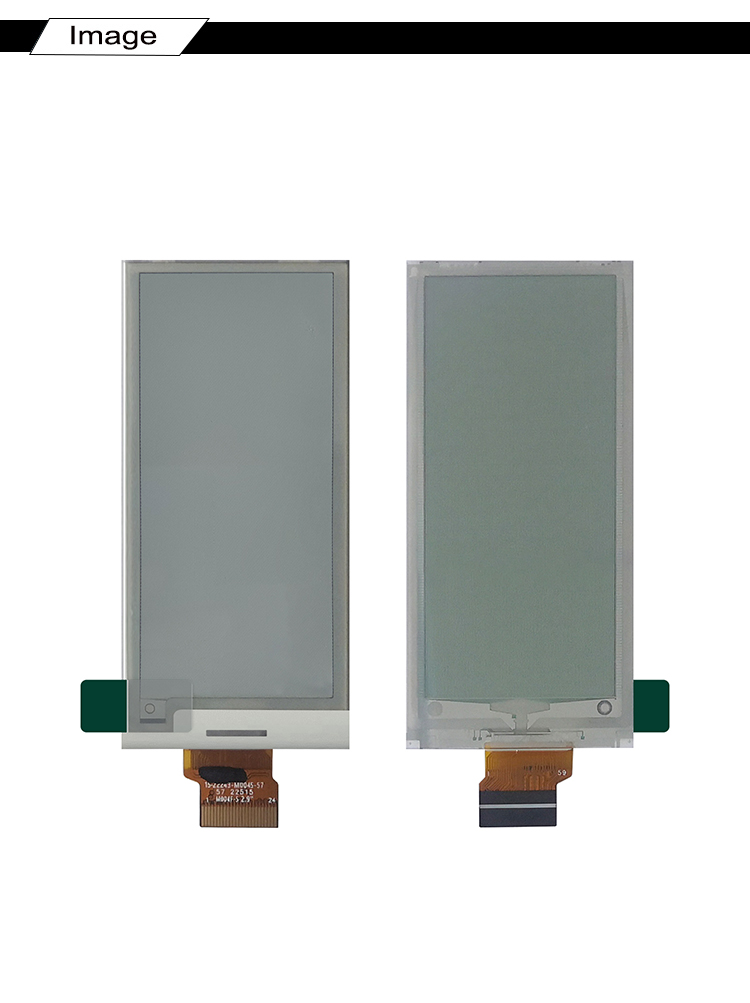

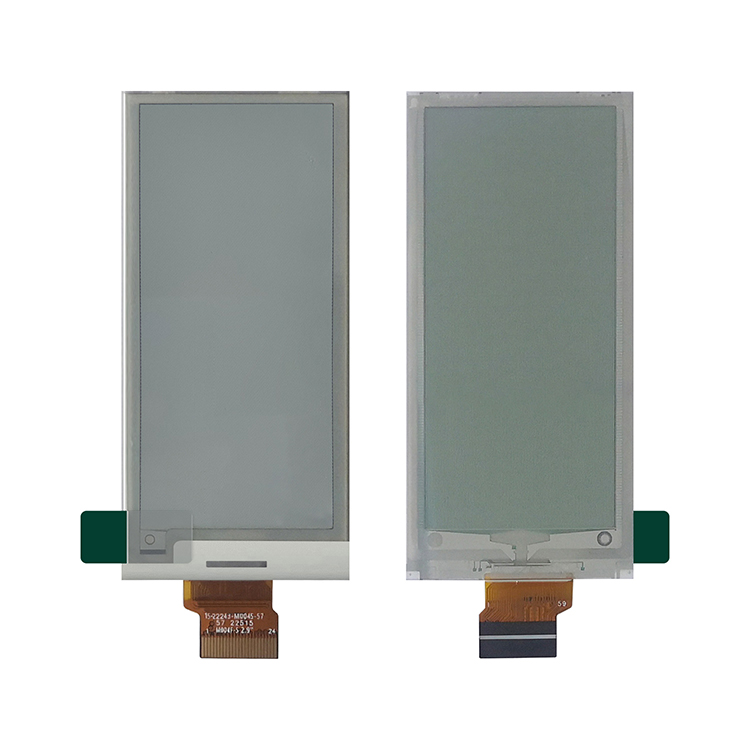

2.9 inch E-ink Display Module 128(H)×296(V) E-paper

Product Introduction

4.2 inch E-ink Display Module 400x300 E-paper

DESCRIPTION

HICENDA

HICENDA HE004F is 004F is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design.The2.9”active area contains 128×296pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gatebuffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.

General Specification

Display Type:	Eink display
Display Mode:	Active Matrix Electrophoretic Display
Model Number:	HE004F
Diagonal Screen size:	2.9 inch
Interface:	wire SPI i
Number of Pixels:	128(H)×296(V)

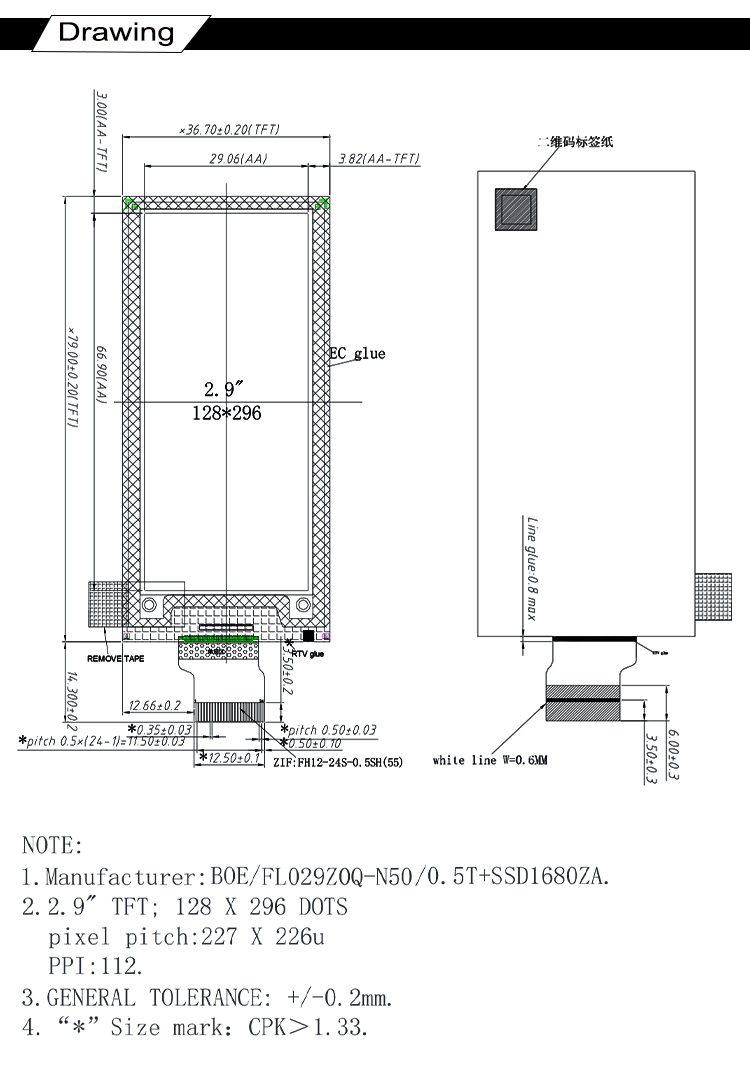

Panel Size:	36.7(H)×79.0 (V) ×0.92(D)(mm)
Driver IC:	SSD1680ZA
Active Area:	29.06(H)×66.90(V)(mm)
:	EINK
:	0.227×0.226(mm)
Weight:	5.22±0.5(g)
Color:	Eink
